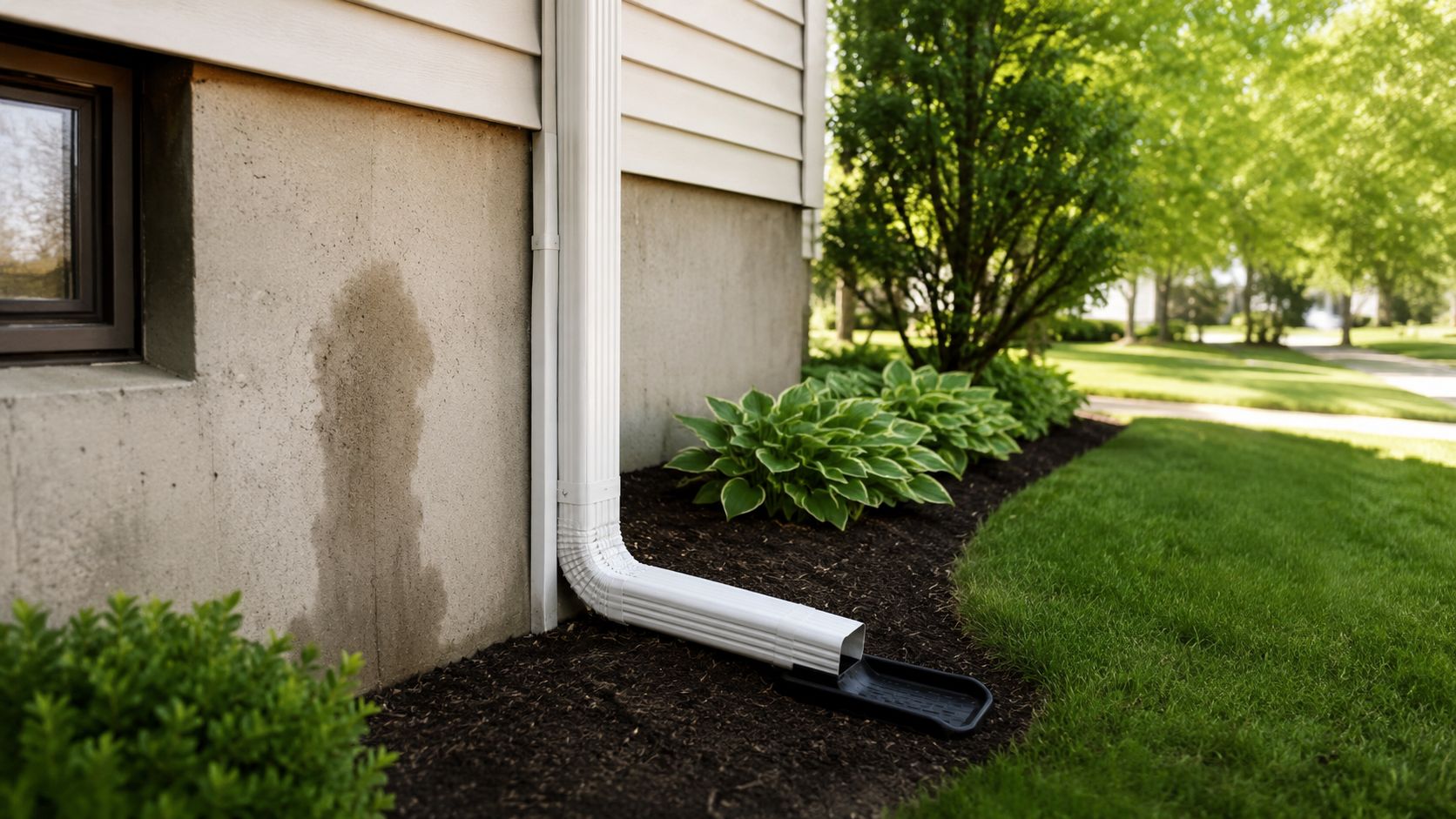

That damp stripe on the basement wall, the mulch trench under the gutter corner, the slick patch on the walkway after a storm. Those are usually downspout problems before they become foundation problems.
In Utah, downspout installation has to deal with more than ordinary rain. Snow piles up on roofs, ice sits in elbows, winter swings into thaw, and then summer downpours hit hard enough to expose every weak joint and bad discharge point. Generic advice misses that. A system that looks acceptable in dry weather can still dump water against the house, freeze solid in January, or pull loose under snow and ice.
Your Guide to Proper Downspout Installation
A downspout's job sounds simple. Move roof water from the gutter to a safe discharge point. In practice, a lot can go wrong. If the outlet is in the wrong place, if the pipe isn't supported, or if the bottom empties next to the foundation, the whole system fails where it matters most.
That's one reason the industry keeps growing. The global gutter downspout market was valued at USD 8.03 billion in 2023 and is projected to reach USD 14.31 billion by 2032, according to Wise Guy Reports on the gutter downspout market. Homeowners and builders are paying closer attention because water management protects the structure, not just the trim.
What poor drainage actually does
When a downspout dumps near the house, water soaks the soil at the footing line. In Utah clay soils and freeze-thaw conditions, that can turn into movement, cracking, heaving, and chronic moisture problems faster than most homeowners expect.
You'll usually see warning signs before major damage:
- Splashback on siding: Water rebounds off hard soil, rock, or concrete and stains lower wall surfaces.
- Settling mulch and trenching: Fast discharge cuts channels through beds and strips away topsoil.
- Ice buildup at the base: Winter discharge across walks and drives creates slick spots and freeze hazards.
- Wet crawlspace or basement edges: Moisture often shows up below the problem corner, not directly where you first look.
Practical rule: If water leaves the roof correctly but finishes its trip beside the house, the system is still installed wrong.
What a good installation solves
A proper setup does three things. It collects water at the right location, carries it down without leaks or movement, and discharges it far enough away that it can't cycle back toward the foundation.
That means paying attention to spacing, pitch, fastening, material choice, and termination. It also means building for Utah weather, not for a brochure photo taken in a mild climate.
Planning and Measuring for Flawless Drainage
Most downspout problems start before the first cut. Homeowners buy parts, hold a few elbows up to the wall, and improvise the rest on a ladder. That's how you end up with crooked runs, weak offsets, and water emptying into the wrong area of the yard.
The planning phase is where the job gets easier. When the layout is right, installation is straightforward.
Start with spacing and discharge
Industry guidance calls for one downspout for every 40 feet of gutter, and the discharge should terminate at least 5 to 8 feet away from the foundation to reduce overflow and foundation risk, as outlined in these downspout placement guidelines.
That number matters in the field. If a long gutter run has too few outlets, water overruns the front edge in a cloudburst and builds heavy standing loads in winter. If the outlet is too close to a corner return, the elbows get cramped and the wall offset gets awkward.
Where placement works best
Corners and low points usually give the cleanest path. They also make future cleaning easier because you can access the run without fighting around windows, gas meters, hose bibs, or deck framing.
Before you buy parts, walk the house and mark:
- Best outlet locations: Look for corners or natural low points in the gutter run.
- Wall obstructions: Light fixtures, conduits, vents, and trim details can force a different offset.
- Safe discharge areas: Water should end where grade carries it away, not across a walkway or into a planting bed that already stays wet.
- Winter trouble spots: Avoid dumping where meltwater will refreeze on steps, driveways, or paths.
The downspout route should be boring. Straight, supported, and predictable beats clever every time.
Match materials to the house and climate
Utah sun is hard on cheap plastic. Freeze-thaw cycles are hard on brittle fittings. Snow sliding off a roof is hard on anything loosely fastened. For most homes, aluminum handles the climate well because it's light, workable, and widely available in colors that match fascia and soffit. Vinyl can work in limited cases, but I'm cautious with it where cold snaps and UV exposure are both part of the year.
Sealant and fasteners matter as much as the pipe. Use exterior-grade gutter sealant, rivets or screws that fit the system material, and brackets that hold the run tight to the wall.
If you're also looking at grade correction around the house, this guide to protecting your home's foundation from water is worth reading because downspouts and yard drainage have to work together.
Downspout Installation Tools and Materials Checklist
| Category | Item | Notes |
|---|---|---|
| Layout | Tape measure | For gutter run length, wall offset, and discharge path |
| Layout | Pencil or marker | Mark outlet location and bracket points |
| Layout | Level | Check plumb on vertical runs and pitch on extensions |
| Cutting | Tin snips | For outlet cuts and trimming aluminum components |
| Cutting | Drill/driver | For screws and bracket installation |
| Fastening | Rivet gun | Useful when assembling outlet and joints |
| Fastening | Exterior screws | Match fastener type to the downspout material |
| Sealing | Gutter sealant | Seal drop outlet and critical joints |
| Main parts | Drop outlet | Connects gutter trough to the downspout assembly |
| Main parts | Elbows | Create the wall offset from gutter to siding |
| Main parts | Downspout sections | Vertical pipe sections for the wall run |
| Main parts | Brackets or straps | Secure the downspout to the wall |
| Termination | Bottom extension | Carries water away from the house |
| Termination | Splash block or drain connection | Helps manage discharge at grade or into a drain system |
| Safety | Extension ladder | Stable access to gutter line |
| Safety | Work gloves and eye protection | Sharp edges and metal filings are common |
The Core Downspout Installation Process
Bad installations usually fail in one of four places. At the outlet, at the offset, at the wall attachment, or at the discharge. That's why I don't treat this as a simple “hang a pipe and call it done” job. In Utah, every weak point gets tested by snow load, ice, wind, and sudden runoff.

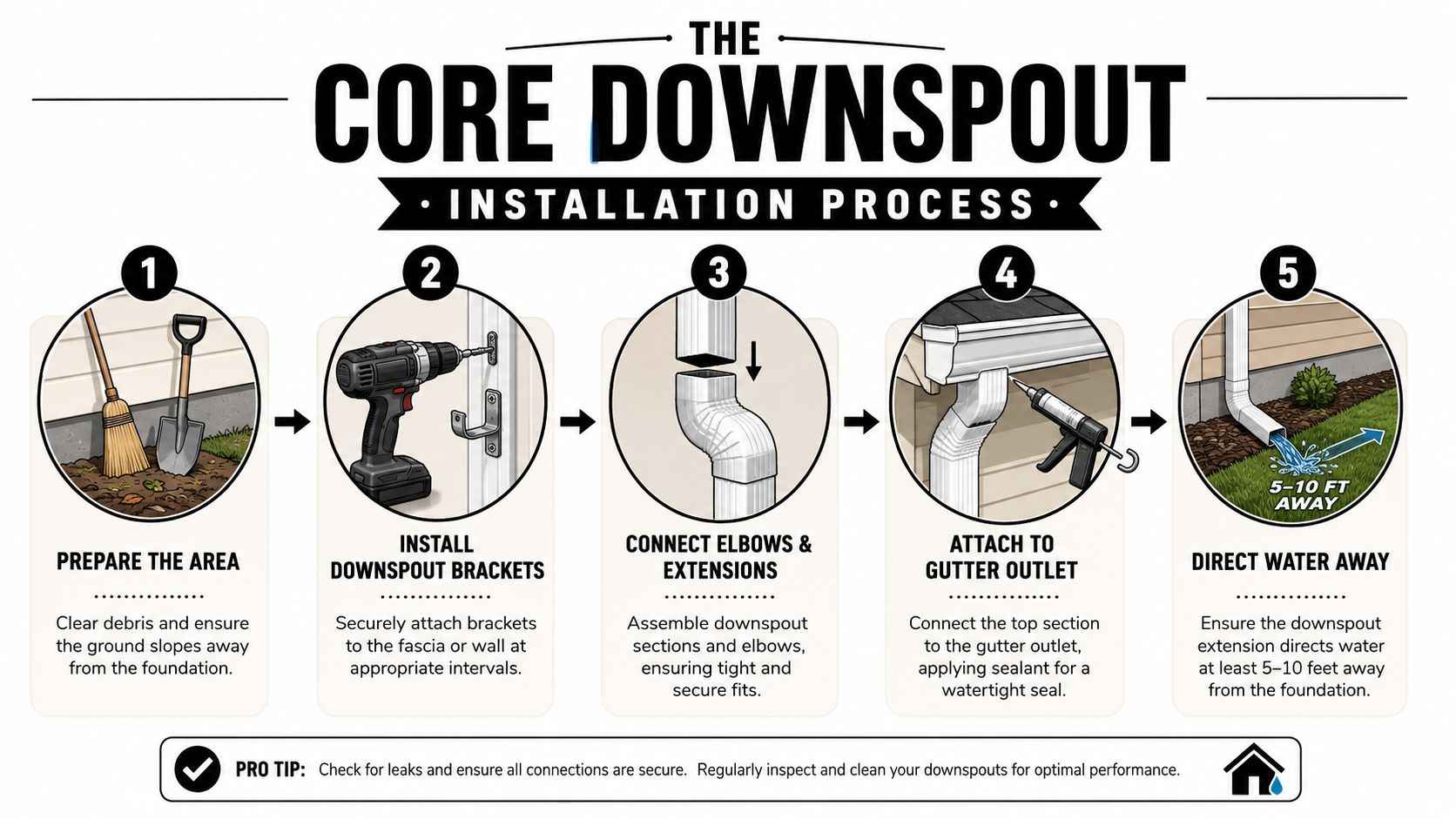

This visual lays out the basic flow before you start cutting and fastening.
Create a watertight gutter connection
The top connection sets the tone for the whole installation. If the outlet is hacked in roughly or sealed poorly, water leaks into the fascia area, stains the siding, and drips behind the downspout where you may not notice it right away.
Mark the outlet at the planned low point, cut carefully with snips, fit the drop outlet cleanly, and seal the connection before fastening it. The goal is a snug mechanical fit backed by sealant, not sealant used as a substitute for fit.
Assemble the offset on the ground
The short elbow assembly that brings the run from the gutter edge back to the wall is where a lot of DIY jobs look rough and perform worse. Assemble that offset on the ground first so you can test alignment before climbing back up.
Keep the pieces oriented so water stays inside the seams. A clean offset reduces turbulence, looks better against the house, and is less likely to shake loose in wind.
After you've seen the layout, this video helps visualize the physical sequence of fitting parts and attaching the run.
Fasten the vertical run like it has to survive winter
Professional installation standards call for the first bracket 12 inches below the top elbow, with subsequent brackets every 6 to 8 feet, and joints riveted or screwed and sealed, based on this professional downspout installation method. Those details aren't cosmetic. They're what keep the pipe from rattling, separating, or kicking away from the wall under load.
Here's what works in the field:
- Set the top support early: The upper bracket controls the entire line below it.
- Check plumb before locking fasteners: A run that leans even slightly tends to fight every lower connection.
- Secure every joint mechanically: Friction fit alone won't hold through winter movement.
- Keep the bottom controlled: The lower section takes impacts from shovels, pets, kids, and moving ice.
A downspout should feel attached to the house, not merely leaning against it.
Manage discharge with Utah in mind
This is the part generic guides often miss. In Utah, the bottom of the system can become the most destructive part if it empties where snowmelt refreezes or where grade sends water back to the home.
At grade, the simplest answer is often a solid extension aimed toward open soil that slopes away. If the house layout requires an underground line, treat that as drainage work, not as an afterthought. Building America guidance notes that in cold climates like Utah, buried lines need proper slope of 1/8 to 1/4 inch per foot, and cleanouts are critical to avoid frozen blockages in systems affected by frost conditions, as discussed by the Building America Solution Center on gutters and downspouts.
That's why I push back on the “just bury it” approach. A buried line without slope becomes a water trap. A water trap becomes ice. Ice becomes backup, split fittings, or water exiting at the least helpful spot possible.
If you want a contractor option for integrated exterior work, including gutter and downspout-related services, Superior Home Improvement is one Utah-based company homeowners can evaluate alongside other local installers.

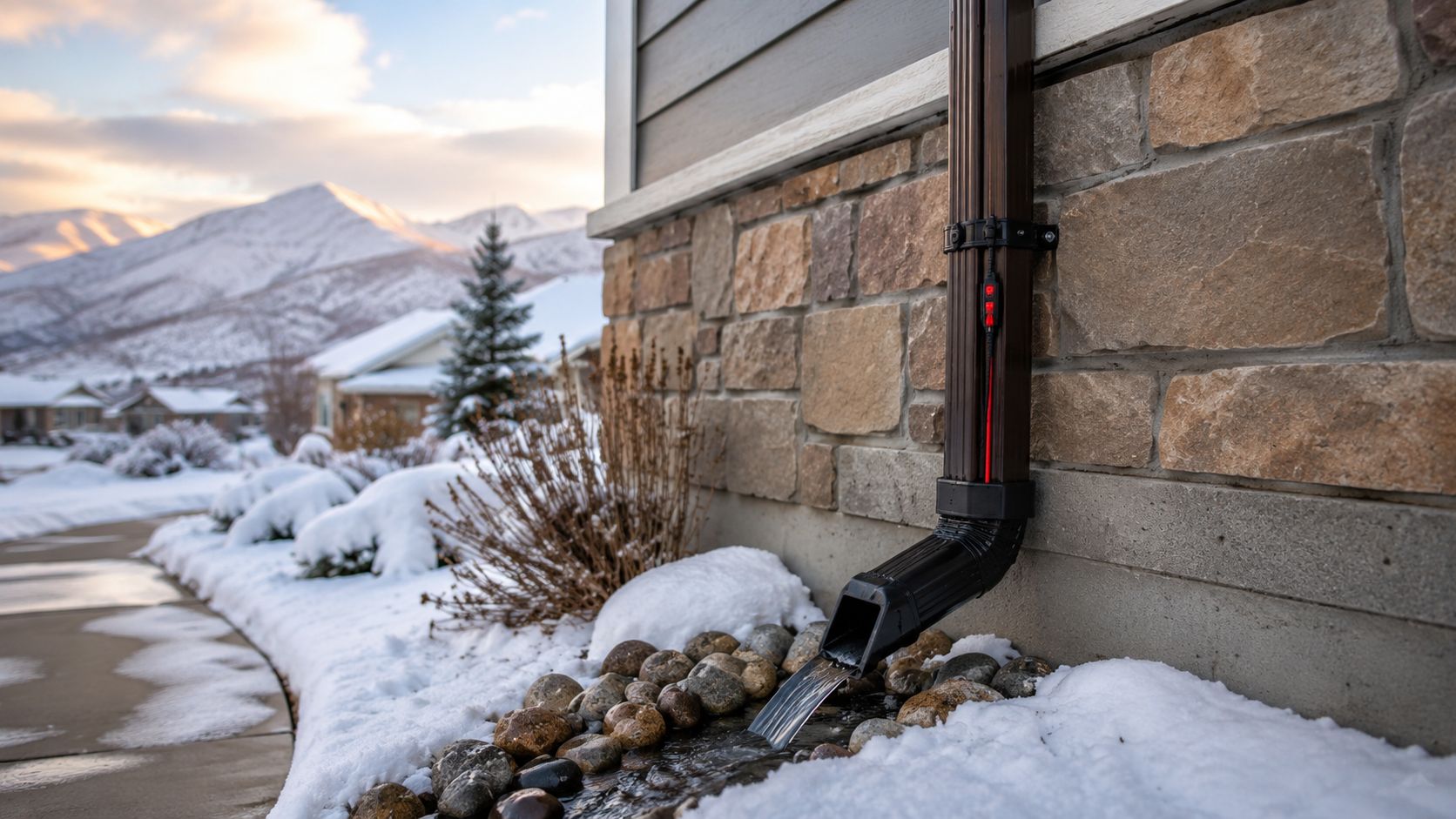

Winter-Proofing Your System for Utah's Climate
A downspout that performs well in July can fail badly in January. That catches people off guard. They test it with a hose, see water moving, and assume the job is done. Then snowpack sits on the roof, a thaw starts, the elbow freezes overnight, and water backs up where it shouldn't.
That's the Utah difference. The installation has to survive changing states of water, not just water itself.
The shortcut that causes winter failures
The most common cold-weather shortcut is burying a drain line with no real thought to slope, cleanout access, or where water sits after a storm. That looks tidy in fall. It often becomes a frozen plug in winter.
In cold climates like Utah, underground drainage has to account for frost behavior. Burying pipes without proper slope of 1/8 to 1/4 inch per foot and without cleanouts increases the risk of frozen blockages, according to the earlier Building America guidance. The right fix is simple in concept. Keep the line moving, make it serviceable, and avoid low pockets that hold standing water.
What actually works through freeze-thaw cycles
Utah homes need drainage details that tolerate snowmelt first thing in the morning and a hard freeze the same night.
Use this checklist when winterizing or correcting an installation:
- Keep extensions clear: Crushed or kinked bottom extensions trap water and start the freezing cycle.
- Watch walkway crossings: Don't let discharge run across paths where it will ice over.
- Clear debris before snow season: Leaves in elbows and outlets turn minor slowdowns into full backups.
- Check wall straps after storms: Snow sliding from a roof can twist or loosen the run.
- Use heat tape carefully: It can help in repeat freeze zones, but it doesn't fix bad layout, poor slope, or clogged piping.
If water has a place to stop, winter will eventually find it.
Underground lines need service access
Another mistake is treating buried drainage like a sealed, permanent feature that will never need attention. In reality, underground systems need a way to be checked and cleaned. A line that can't be serviced is a line that eventually becomes a mystery problem.
When I look at Utah installations, I want to know three things right away. Where does the water exit, does the pipe maintain fall the whole way, and can someone reach the system if it clogs or freezes? If one of those answers is unclear, the installation isn't finished.

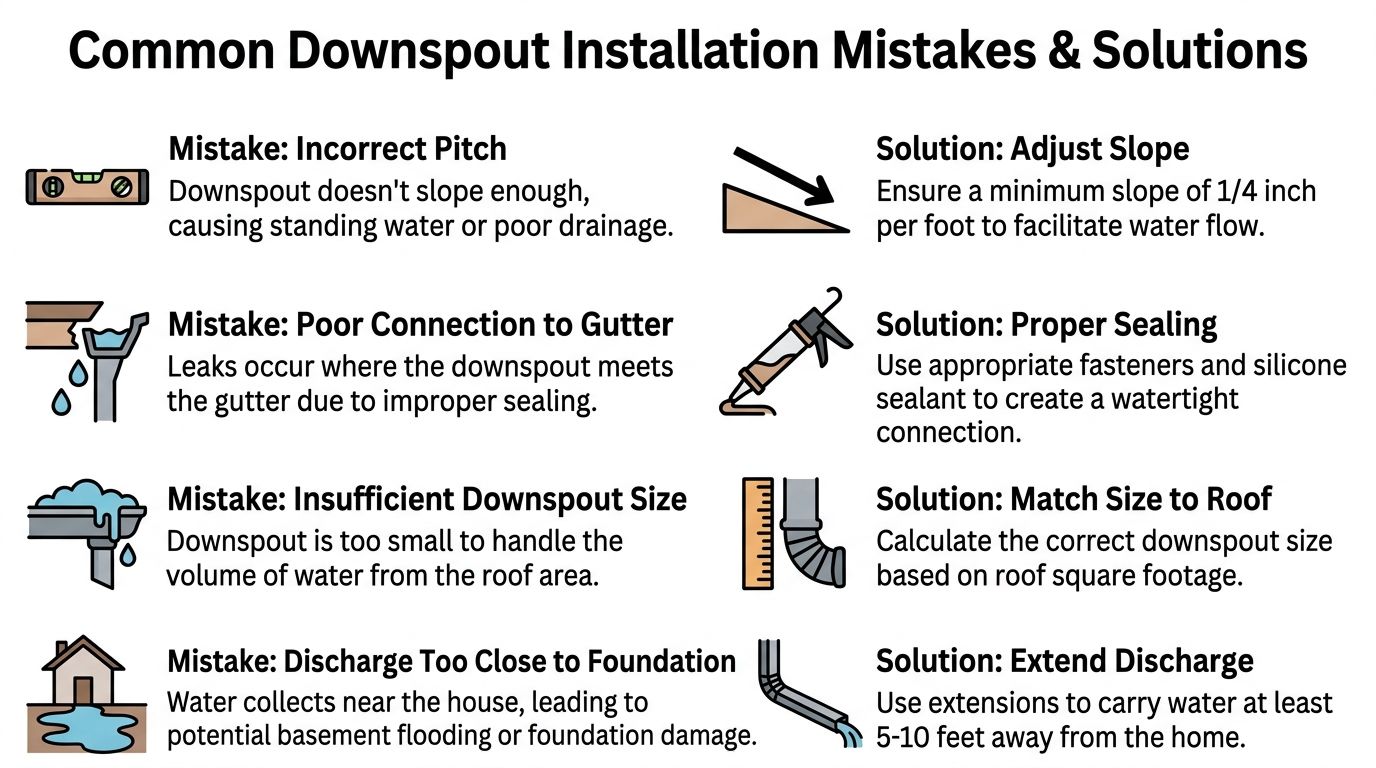

Common Installation Mistakes and How to Avoid Them
Most bad downspout installations aren't dramatic. They're small errors stacked together. A weak bracket here, a poor seal there, an extension that's too short, and suddenly the homeowner is dealing with wet concrete, stained siding, and ice at the front walk.
The mistakes below are the ones I see most often on Utah homes.
Four errors that create most of the trouble
Some problems are easy to spot. Others only show up during a storm or spring melt. Either way, the fix is usually straightforward once you identify the true cause.
- Too little support on the wall: The downspout moves, twists, or pulls at the elbows. The fix is better bracket placement and tighter fastening, not extra sealant.
- Leaky outlet connection: Water escapes at the gutter transition and stains the wall. Remove the assumption that caulk alone will save it. Refit, fasten, then seal.
- Discharge at the foundation edge: This is still the number one failure. The system carries water down perfectly, then dumps it where it can do damage.
- Poor extension pitch: Horizontal runs that are nearly flat collect debris and hold water instead of draining.
What homeowners can handle and when a pro makes sense
A simple replacement on a one-story home with open wall access is often manageable for a careful homeowner. If the gutter already has a sound outlet, the siding is in good condition, and you're only replacing damaged lower sections or adding a proper extension, that's a reasonable DIY scope.
A professional is the better choice when the job includes any of the following:
| Situation | Why it changes the job |
|---|---|
| Multi-story access | Ladder work gets riskier and alignment gets harder |
| Steep grade around the house | Safe discharge becomes harder to plan |
| Underground drain tie-in | Slope, cleanouts, and freeze behavior matter |
| Signs of rot or staining near the eaves | The issue may involve more than the downspout |
| Complex rooflines | Water collection points aren't always obvious |
Red flags that shouldn't be ignored
If you see moisture at soffits, peeling paint near the outlet, recurring ice buildup, or movement where the downspout meets the wall, don't assume the pipe alone is the issue. The gutter pitch, fascia condition, or roof runoff pattern may be part of the problem.
The cleanest-looking downspout on the block is still a bad installation if the discharge point is wrong.
A good installer diagnoses the whole drainage path. A rushed installer replaces visible parts and leaves the failure in place.
DIY vs Pro Installation Costs and Considerations
The honest answer is that downspout installation sits right on the line between a practical DIY project and a job that can get expensive fast if you misread the conditions.
If you already own a stable ladder, drill, snips, rivet gun, and level, and the house is straightforward, DIY can make sense. The work is methodical. Measure accurately, dry-fit parts, support the run properly, and test the discharge before you call it done.
DIY makes sense when the scope stays simple
A homeowner usually has a fair shot at this when the project looks like this:
- Single-story access: You can work safely without extreme ladder positioning.
- Clear wall path: No tricky offsets around stonework, trim returns, or utility lines.
- No buried drainage: Surface discharge is acceptable and the grade carries water away.
- No signs of hidden damage: Fascia, soffit, and siding around the gutter line are sound.
The biggest DIY trap isn't usually assembling the pipe. It's underestimating layout and termination. That's where many weekend jobs go wrong.
Hire a pro when the installation affects the building envelope
Professional installation is usually the smarter move when the house has multiple roof planes, second-story runs, recurring winter ice problems, or any evidence that water has already been getting behind the system. At that point, you're not just hanging components. You're protecting siding, trim, sheathing, and foundation conditions.
A pro also makes more sense if you need coordinated exterior work. Downspouts often intersect with gutter correction, fascia repair, siding penetrations, and site drainage. Those aren't separate problems on the house. They're one water-management problem showing up in several places.
Think beyond the install day
A proper installation should be easy to inspect, easy to clean, and predictable in every season. That long-term part matters. If a system is awkward to service or discharge points disappear under snow, you'll be back dealing with the same corner again.
If your home has pooling water, winter icing at exits, loose downspouts, or signs that runoff is reaching the foundation, a site-specific evaluation is the safest next step. Superior Home Improvement provides Utah homeowners with exterior assessments and installation support for gutter and downspout issues, along with related roofing and siding conditions, so you can fix the full drainage path instead of patching one visible symptom.
