The first clue usually shows up in the lawn, not the controller box. One strip goes pale and crunchy while the other stays soggy, or a sidewalk gets rinsed every morning while the grass under the maple still looks thirsty. In Utah, that kind of uneven watering isn't a mystery, it's a sign the heads, zones, or schedule need real adjustment.
A lot of homeowners start by twisting one screw and hoping the pattern fixes itself. That works sometimes, but not when different zones throw water at different rates, or when the problem is pressure, debris, or the wrong head type. A better approach is to treat sprinkler adjustment like field work, measure first, then tune each zone until coverage is even and runoff drops.
If you want a straightforward example of how water-saving irrigation thinking fits into a broader yard strategy, the greener Austin lawn with Modern Yard piece is a useful companion read. It lines up with the same basic truth Utah homeowners run into all the time, efficient watering starts with control, not guesswork.
Why Homeowners Need to Adjust Sprinklers
Utah yards expose bad sprinkler settings fast. Dry wind, hot afternoons, clay-heavy soil in some neighborhoods, and patchy pressure across older systems can turn a decent lawn into a patchwork of brown spots, puddles, and overspray. When the heads are aimed wrong or the controller is left on one stale schedule, the system wastes water in the places that already get enough and starves the spots that need it.
That's why how to adjust sprinkler heads isn't a nice little maintenance task. It's the difference between a system that supports the lawn and one that fights it. If a head throws onto the driveway, tilts after mowing, or barely reaches its neighbor, the whole zone loses efficiency even if the controller is programmed correctly.
Practical rule: don't start with the screw and hope for the best, start with the yard and let the yard tell you what's off.
A lot of generic advice stops at “turn the nozzle” or “lengthen the arc.” That's too shallow for real residential systems, especially in a state where one zone may face full sun all afternoon and another sits in shade near the house. You need a zone-by-zone mindset because a single setting rarely fits the whole property.
The good news is that adjustment is measurable. If you can identify where water lands, how long a zone runs, and whether the head type matches the area it's serving, you can correct most common problems without replacing half the system. For many homeowners, that means less runoff, fewer dry edges, and a controller that finally does what it was supposed to do in the first place.

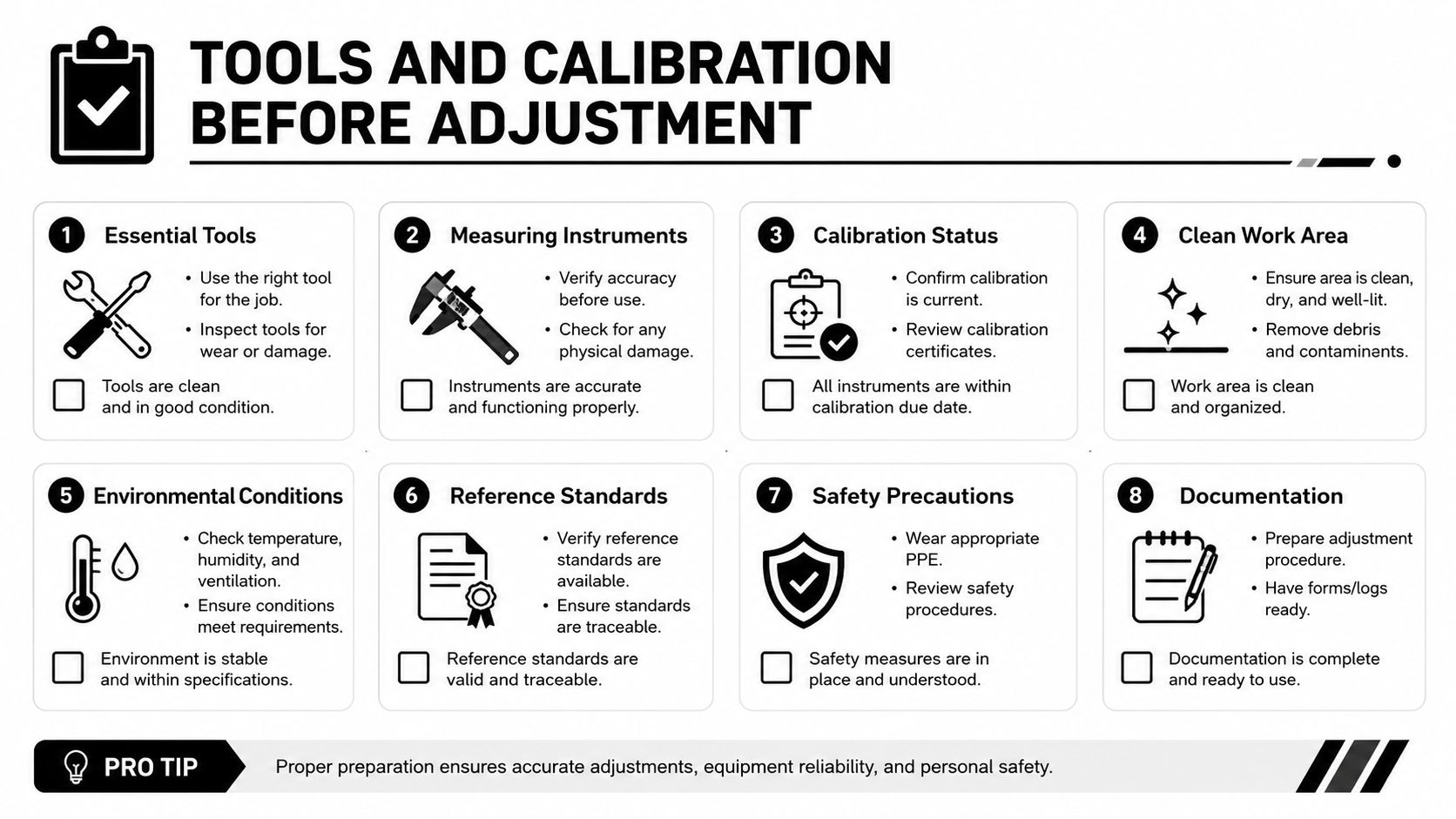

Tools and Calibration Before Adjustment
Before touching a head, gather the basics and test the zone. The core tools are simple, a flat screwdriver, the correct rotor key or brand-specific adjustment tool, a ruler marked in small increments, and 5 to 10 identical catch containers for calibration. That prep matters because you can't really tune a sprinkler system by eye and expect consistent results.
The evidence-based method is straightforward. Run one zone for 15 minutes, collect water in those identical containers, measure the depth to the nearest 1/8 inch, then multiply the average depth by 4 to estimate the irrigation rate in inches per hour. If a zone averages 0.25 inches in 15 minutes, that zone is applying about 1 inch per hour (PWCVA sprinkler calibration guide).
That number gives you a real baseline. It tells you whether the zone is overapplying, underapplying, or distributing water unevenly across the yard. It also keeps you from making one change and assuming the whole system now performs the same way.
A few prep habits make the work cleaner:
- Use identical containers: Different cup sizes distort the result, even if the zone looks balanced.
- Place them across the whole spray area: The point is to catch the zone's actual pattern, not one lucky section.
- Measure after the full run: Short tests hide weak coverage and pressure issues.
- Write the result down: Once you've changed arc or radius, you'll want the original number for comparison.
Measure first, adjust second. If you skip the test, you're just moving water around, not fixing the system.
Once the zone is measured, the question becomes which head you're dealing with. Spray heads, rotor heads, and impact-style heads all respond differently, and forcing one adjustment method onto the wrong model is how people strip screws, overtwist ratchets, or create a worse pattern than the one they started with.

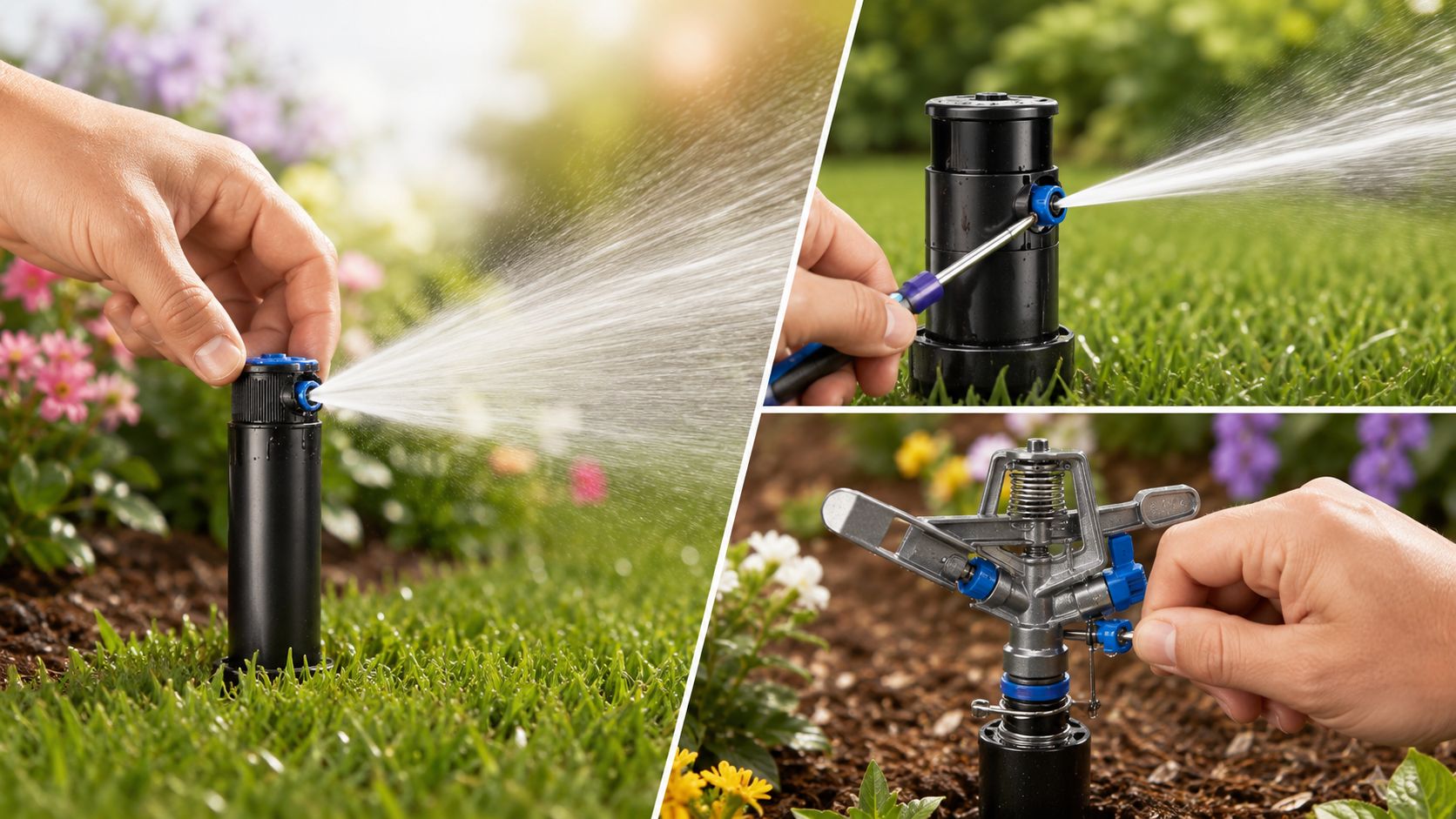

Adjusting Spray, Rotor, and Impact Sprinkler Heads
A head can only be adjusted so far before it stops being the right tool for the area. That's why the adjustment method matters as much as the setting itself. A narrow side yard, a curved bed, and a broad turf panel all need different handling, even if they're fed by the same controller.
Spray heads
Spray heads are the fastest to dial in because the pattern is usually visible right away. Most adjustable nozzles let you rotate the stem to aim the left edge, then fine-tune the throw with the top screw or nozzle dial. If water is hitting a sidewalk or fence, first rotate the head so the pattern lands where it should, then shorten the radius only as much as needed.
A clogged nozzle can look like bad adjustment, so don't assume the screw is the issue if the spray is weak or crooked. Clear debris, check that the head sits level, and confirm the nozzle matches the area it's serving. If a spray head has settled into the ground, it may need to be raised or replaced with a taller body instead of tightened.
Rotor heads
Rotor heads need a different touch. According to a Rain Bird rotor adjustment guide, you insert the brand-specific tool or a screwdriver into the arc socket and turn toward “+” to increase coverage and toward “-” to reduce it, and one full clockwise turn can change the arc by about 90° (Rain Bird rotor adjustment guide). That makes rotor tuning precise, but it also means overdoing it can shove the pattern well past the target zone.
If a rotor sweeps too far, stop at the ratcheting limit rather than forcing the mechanism. The right fix is usually a controlled arc reduction, not extra pressure on the tool. If the rotor still misses the edge after the arc is correct, the nozzle choice or zone pressure may be off.
Impact heads
Impact heads are less common in newer residential yards, but plenty of older Utah systems still use them. They usually rely on friction collars, deflectors, or external adjusters rather than the quick nozzle tweaks seen on modern spray bodies. The goal is the same, shape the throw so water reaches the intended area without blasting beyond it.
Model-specific handling matters most. If the head rotates irregularly, sticks, or throws unevenly, the issue may be wear rather than bad aim. In that case, replacing the head often solves more than repeated adjustment ever will.
A practical brand note
If you're comparing repair options while figuring out what's installed, Barefoot Organics has a helpful adjust sprinkler heads in Cumming guide that reinforces the same model-specific idea. Different head types need different adjustments, and treating them all the same is usually where the trouble starts.
When the head type is right and the pattern is close, keep the changes small. A little movement can solve overspray, while an aggressive tweak can create a dry strip you won't notice until the next heat wave.
Diagnosing Pressure and Coverage Problems
A bad sprinkler pattern is not always a bad setting. The head may be fine, but the system is still giving you clues, like pressure that runs too high, a head that sits crooked, or a nozzle that does not fit the zone. If you keep turning adjustment screws without checking those basics, you will waste time and water.
Start with coverage, then look at pressure. A practical standard is simple, heads should throw water about 80% to 100% of the distance to adjacent heads for efficient overlap, as noted in the Florida SWFWMD guidance. That head-to-head coverage helps prevent dry seams without asking one nozzle to do all the work. If the spray falls short of that range, the issue may be layout or spacing, not just arc.
A Utah yard usually shows the problem before the meter does. Full-sun strips dry out first, sloped areas can shed water, and mixed head zones punish any weak spot in the pattern. That is why I check each zone on its own, not as one big system, and I compare the spray pattern to the turf edge, the curb, and the neighboring head.
Here's what to look for before you keep adjusting:
- Misting or noise: That usually points to pressure that is too high. If throttling the master valve creates misting or noise, the fix may belong at the station valve or nozzle rather than the main valve, as the Florida SWFWMD guidance notes.
- Dry strips between heads: Usually means the pattern does not reach neighboring heads or one nozzle is blocked.
- Overspray onto hardscape: The arc may be too wide, or the head may be tilted out of alignment.
- Weak or uneven spray: Check for clogged nozzles, damaged heads, or a mismatch between head type and zone pressure.
- One head acting different from the rest: That often points to a clogged nozzle, broken internal part, or a head that is the wrong model for the zone.
The head itself can be the giveaway. If it sits crooked after edging or freeze movement, the spray pattern shifts even when the internal adjustment is correct. Straighten or reset the body before chasing the screw, because a tilted head can make a good nozzle look bad.
The deeper issue is often a zone mismatch. If a zone mixes spray and rotor heads, runs a low-pressure line, or has a master valve that behaves inconsistently, no amount of arc tweaking will make the coverage uniform. At that point, the adjustment work is finished and the diagnosis has to move to pressure, head selection, or zone design.

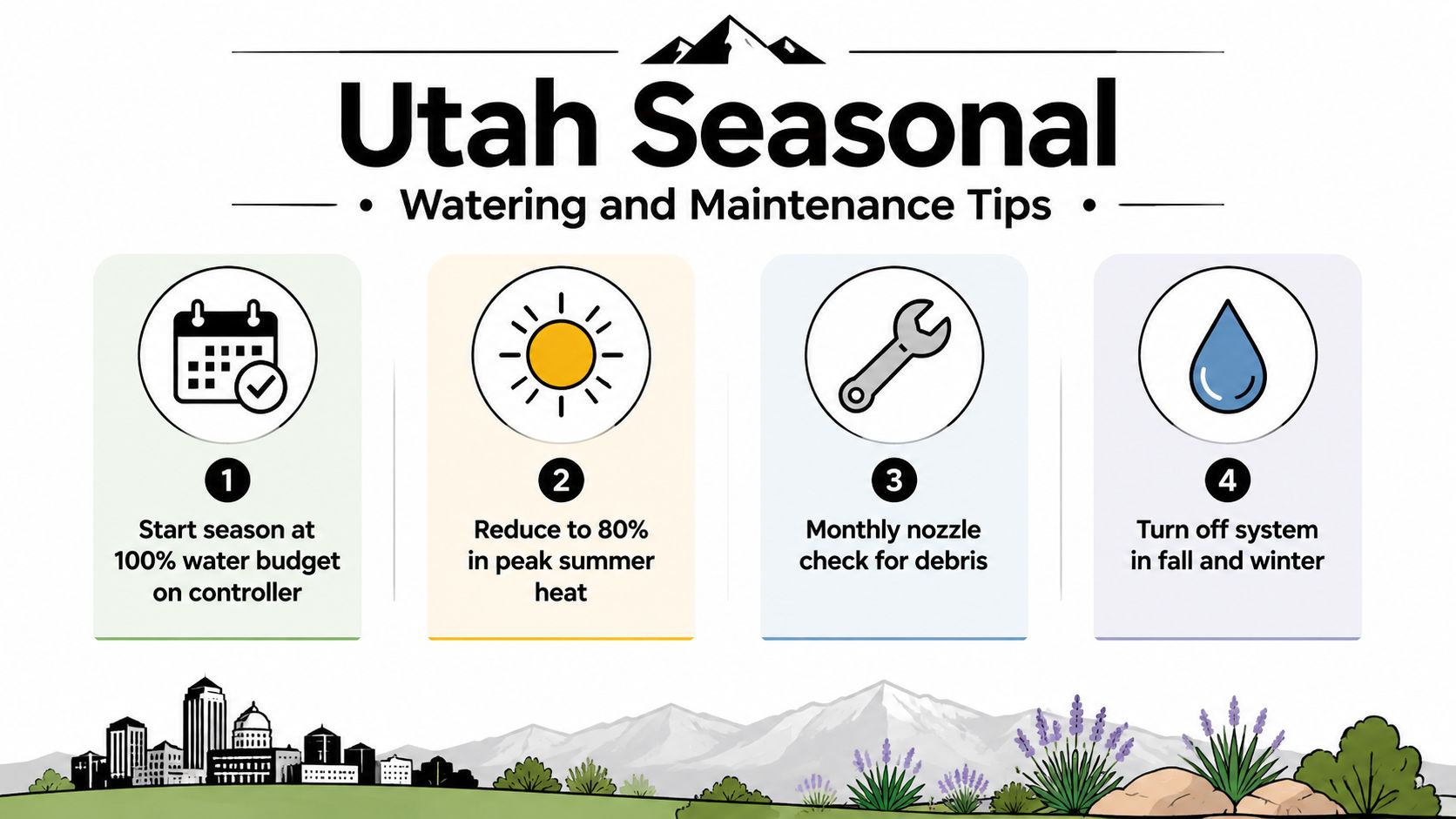

Utah Seasonal Watering and Maintenance Tips
Utah weather makes sprinkler tuning a moving target. Spring can start cool and misleading, then warm fast enough that the same schedule becomes too light for full sun areas. Later in the year, the system needs less demand, and a schedule that made sense in July can become wasteful by the time the air cools.
The cleanest seasonal lever is the controller's water budget or percent adjust setting. Regional H2O's guidance says to leave each zone's base schedule at 100% and then adjust the water budget percentage to match the Weekly Watering Number, while Rain Bird uses the same seasonal logic by defining WB as the seasonal water-budget percentage (Regional H2O programming guidance). In plain terms, 100% is the baseline, then you scale up or down as conditions change.
For Utah homeowners, that makes the controller the first place to look before reworking hardware. A hotter stretch may justify a higher setting, while cooler weather calls for backing off. The important part is keeping the base schedule stable and using the percentage to fine-tune seasonal demand instead of rebuilding the whole program every time the weather shifts.
A few maintenance habits keep the system honest:
- Start the season at 100%: Use the controller baseline before making any seasonal changes.
- Check nozzles regularly: Debris can distort the pattern and mimic a bad adjustment.
- Watch for tilted heads after lawn work: Edging, aeration, and winter movement can knock them out of alignment.
- Prepare for winter shutdown: Utah freeze risk makes fall cleanup and shutdown part of routine care, not an optional extra.
Seasonal tuning works best when the hardware stays clean. A clogged nozzle on a perfectly programmed controller still wastes water.
If you're managing multiple zones, this is also the best time to document what each one is doing. One zone may need a shorter runtime, another a different nozzle, and a third may need the heads cleaned. That kind of record keeps the controller from becoming a guessing game next spring.
When to Hire a Sprinkler Professional
DIY works best when the problem is limited and visible. If you've calibrated the zone, corrected the arc, cleaned the nozzles, and the yard still shows sharp pressure swings or patchy coverage, the system probably needs a deeper diagnosis than a homeowner repair can provide. That's especially true when you're dealing with mixed head types, zone-to-zone pressure differences, or a master valve that makes noise when you try to reduce pressure.
Persistent misting, repeated overspray, or heads that won't stay aligned usually mean the adjustment is fighting the system instead of fixing it. A licensed irrigation pro can test the zone, swap mismatched heads, verify pressure, and decide whether the issue is a valve, nozzle, or pipe problem. That saves you from buying parts at random and still ending up with a thirsty lawn.
This is also where a full exterior contractor can make sense if the sprinkler issue is part of a larger drainage or landscaping problem. Superior Home Improvement is one Utah-based option that focuses on exterior upgrades, while some sprinkler specialists handle valves, leaks, electrical components, and seasonal adjustments. If the system is aging, that broader view matters because the fix may sit somewhere between the controller and the plumbing.
The line is pretty clear. If you can't get uniform coverage after proper calibration, if the head type seems wrong for the zone, or if pressure changes create more problems than they solve, it's smarter to bring in help than to keep turning screws.
Key Takeaways for Sprinkler Adjustment
The best sprinkler work follows the same order every time. Calibrate each zone first, then adjust by head type, then diagnose pressure and coverage before assuming the controller is the problem. That sequence keeps you from chasing symptoms and makes each change easier to evaluate.
Utah yards reward that kind of discipline because local conditions change fast. One zone can need fine arc control, another can need cleaner nozzles, and a third may only need a seasonal budget change at the controller. When you treat every zone separately, you stop wasting water on the wrong places and start getting even coverage where the grass needs it.
For a broader maintenance checklist that fits that same mindset, the 2026 sprinkler system care guide is a useful reference point. The big lesson is simple, a sprinkler system works best when it's measured, cleaned, and tuned on a schedule instead of repaired only after the lawn complains.
If your system still leaves dry seams or soggy edges after these adjustments, it's time to get a professional set of eyes on it. Superior Home Improvement can help Utah homeowners think through exterior problems that affect comfort, efficiency, and long-term yard performance, so visit Superior Home Improvement and compare your options before the next watering cycle starts.
