When it comes to replacing a window, the old carpenter’s saying, “measure twice, cut once,” has never been more true. But for windows, we add a twist: measure three times, and use the smallest number. Always rounding down to the nearest 1/8 inch is the key to ensuring your new window slides into place perfectly. This isn't just a technicality; it's the single most important step to prevent costly headaches and guarantee an airtight fit.
Why Precision Window Measurement is Non-Negotiable
Before you even think about grabbing a tape measure, let’s talk about what’s really at stake. Learning how to measure for a replacement window isn't just about getting numbers on a notepad—it’s the foundation of your entire project. A small mistake here doesn’t just cause a small problem; it can completely derail your budget and schedule.

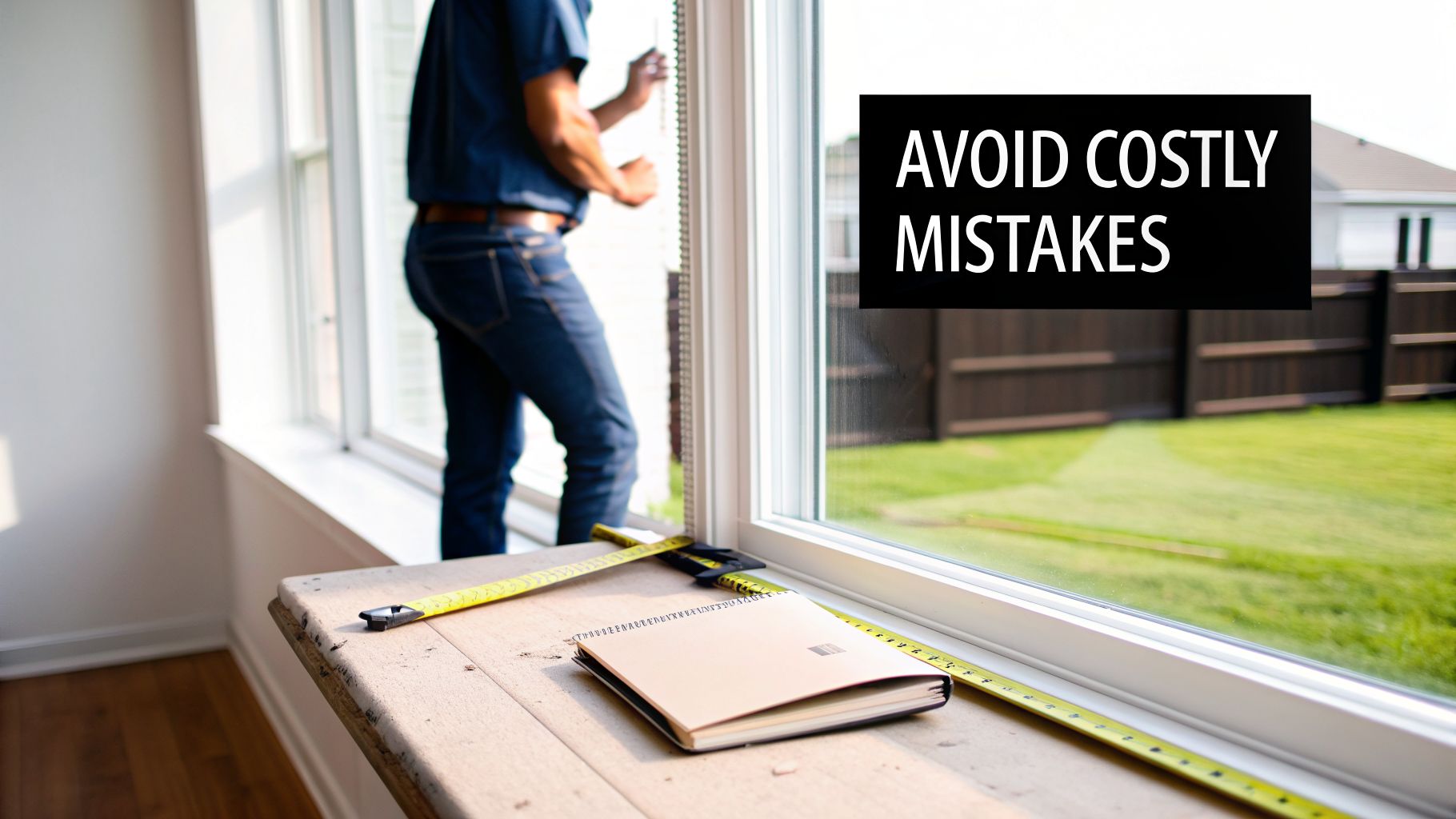

The Steep Price of a Small Error
I've seen it happen more times than I can count. A homeowner carefully measures their window opening, but lets the tape measure sag just a tiny bit in the middle. The result? A width measurement that’s off by a mere 1/4 inch. When the custom-ordered window arrives weeks later, it’s just too big to fit. Now they’re stuck with a useless window, an open hole in their wall, and the bill for a brand new one.
This isn't just a hypothetical. Inaccurate measurements can drive up replacement costs by as much as 30% when you factor in rush re-orders or the need to reframe the opening. With over 20 million windows replaced in the U.S. each year, these little mistakes add up to a mountain of frustration and wasted money for homeowners.
A window that’s too small will create gaps, leading to drafts and sky-high energy bills. A window that's too big simply won’t fit—and that’s a much bigger, more expensive problem to solve.
A Perfect Fit for Peak Performance
Especially in places with dramatic temperature swings, like here in Utah, a perfect window fit is everything. An airtight seal is the only way you'll get the full energy-saving benefits you're paying for with modern windows.
Think about it this way:
- Energy Savings: A properly sealed window stops air leakage, which can be responsible for 25-40% of your home's heating and cooling costs. Even a paper-thin gap around the frame can negate the benefits of expensive triple-pane glass.
- Structural Health: Trying to force an oversized window into an opening can warp the frame and crack the surrounding drywall. On the flip side, a window that's too small needs a lot of shims and spray foam, creating weak points that can fail over time.
- Moisture Defense: Gaps around a poorly fitted window are an open invitation for rain and moisture. This can lead to rot, mold growth, and serious damage to your home’s structure.
Of course, before you start measuring, it helps to be sure you're seeing the common signs you need to replace your home windows. Understanding why you're taking on this project makes it easier to appreciate the importance of getting every little detail right from the start.

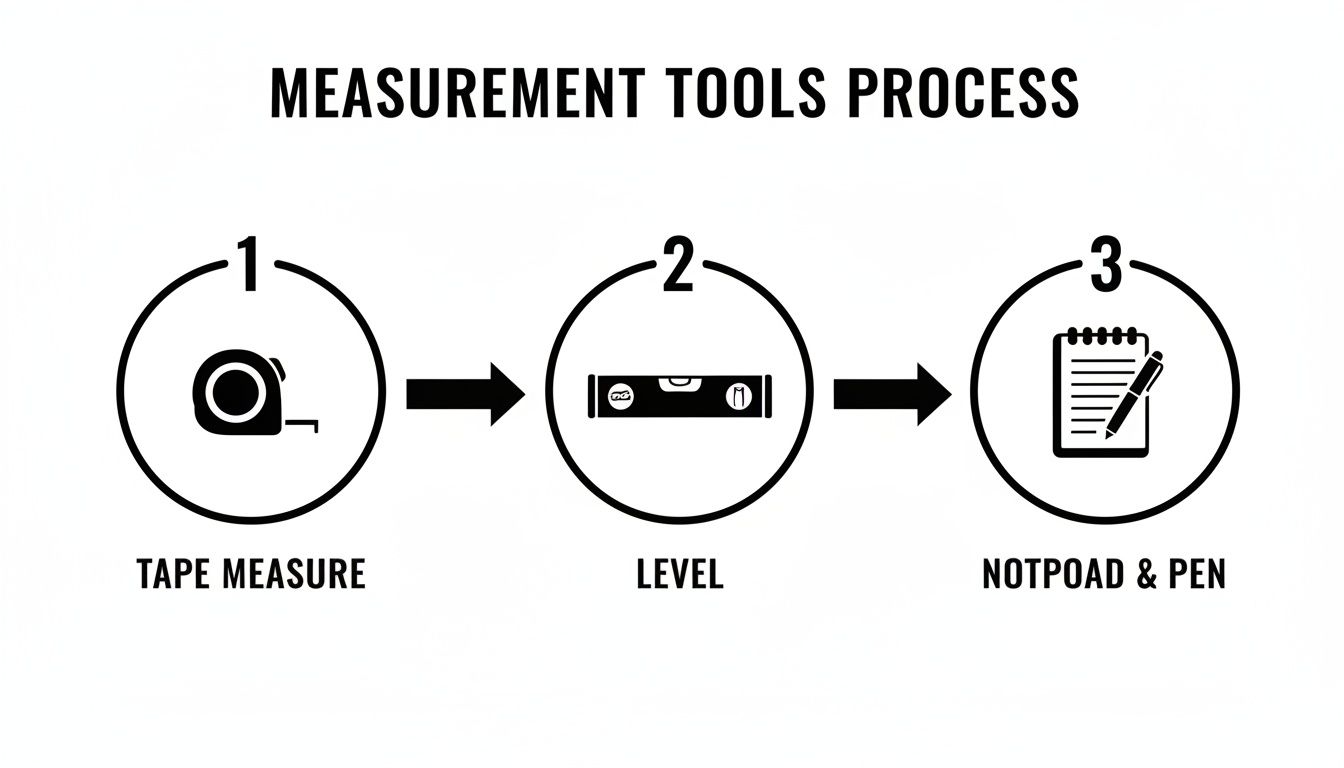

Gathering Your Essential Measurement Tools
Before you touch a single window, let's talk about gear. You don't need a truck full of fancy equipment, but getting your measurements right hinges on a few specific tools. Having the right ones on hand makes all the difference between a smooth installation and a frustrating, costly mistake.
Your most important tool, and your new best friend, is a good 25-foot steel tape measure. Don't even think about using a cloth tailor's tape or one of those flimsy 12-footers from the junk drawer. A quality steel tape won’t sag over a wide window, which is a common cause of inaccurate width readings. A cheap tape can easily be off by 1/8 inch or more, and trust me, that's more than enough to ruin your day when the new window shows up.
Next up is a level—and get one that's at least two feet long. It's tempting to skip this, but it's one of the biggest mistakes I see people make. A level is the only way to know if your current window frame is truly plumb (vertically straight) and level (horizontally straight). Finding out your opening is out of square after you've ordered a perfectly rectangular window is a nightmare you want no part of.
Keeping Your Measurements Organized
Now, for what might be the simplest but most critical part of your kit: a notepad and a pen or pencil. Trying to keep numbers in your head, especially when you're measuring a whole house full of windows, is a recipe for disaster. It’s way too easy to mix up the numbers for the kitchen window and the one in the upstairs bathroom.
The best way to keep everything straight is to create a simple measurement sheet for yourself. Just a quick sketch of each window will do.
Pro Tip: For each window, draw a quick box on your notepad and give it a clear label, like "Living Room – Right Side." Then, write your three width and three height measurements directly on the diagram. This visual map is a lifesaver and practically eliminates confusion later.
You might see pros using laser measures, and they're great for speed, but you absolutely don't need one. With a quality tape measure, a level, and a notepad, you have everything you need to measure for your replacement windows with total confidence.
Alright, let's get to the heart of the matter: getting your measurements right. This is where precision really counts. The method the pros use is often called the three-point measurement technique, and it’s designed to account for one simple fact—most window openings aren't perfectly square.
Don't worry, it's not complicated. Once you get the hang of it, you'll be able to measure any window with confidence. The first and most important rule is to always measure from inside your house. You're measuring the rough opening the new window has to fit into, not the old window frame itself.
You only need a few basic tools to get professional-grade results. It’s all about how you use them.
Taking Your Width Measurements
To get the true width, you’ll take three horizontal measurements from the inside of the window jambs—the flat surfaces on the left and right sides of the main frame. Ignore the trim or casing; you need the dimensions of the actual opening.
- Top: Measure across the top of the opening, from jamb to jamb.
- Middle: Take another measurement across the horizontal center.
- Bottom: Run your tape along the very bottom, right against the window sill.
Jot down all three numbers. It's almost guaranteed they won't be identical, and that's perfectly normal. Homes settle and shift over time.
Now for the golden rule: always use the smallest of the three width measurements. This is non-negotiable. It ensures your new window will definitely fit into the opening at its tightest point.
When you place your order, you'll use that single, smallest width. You'll also want to round this number down to the nearest 1/8 inch. So, if your smallest measurement is 35 9/16 inches, you'll round down and order a 35 1/2-inch window.
Repeating for the Height
Next, you'll do the exact same thing for the height. You're measuring from the head jamb (the top horizontal part of the frame) down to the sill (the bottom piece where the window rests).
Pay close attention here. On many windows, especially older double-hungs, the sill has a slight slope. Make sure your tape measure is on the highest point of the sill, which is the surface the new window will actually sit on.
- Left: Measure the vertical opening on the far left.
- Center: Do it again right in the middle.
- Right: And one final time on the far right.
Again, write all three down. Just like before, you’re going to circle and use the smallest of the three height measurements. This prevents the new window from being too tall for the opening. And yes, you'll round this final number down to the nearest 1/8 inch as well.
A Quick Pro Trick: Check for Square
You've got your final width and height, but don't put the tape measure away just yet. There’s one last check that a professional would never skip: measuring the diagonals. This simple step tells you if your opening is "square."
First, measure from the top-left corner of the opening down to the bottom-right. Record that number. Now, measure the opposite diagonal, from the top-right corner down to the bottom-left.
If those two numbers are identical, congratulations—your opening is perfectly square! If they differ by more than 1/4 inch, the opening is "out of square." This is crucial information to have because it might affect how the new window is installed and insulated.
Window Measurement Recording Sheet
To keep everything organized—especially if you're measuring multiple windows—use a simple chart like this one. It's a lifesaver and helps prevent costly mistakes. Print out a few copies or just recreate it in a notebook.
| Window Location (e.g., Living Room Left) | Top Width | Middle Width | Bottom Width | Smallest Width | Left Height | Center Height | Right Height | Smallest Height | Diagonal 1 | Diagonal 2 | Notes (e.g., out of square) |
|---|---|---|---|---|---|---|---|---|---|---|---|
Be methodical. Fill out one full row for each window before moving on to the next one. This simple habit keeps your project on track and ensures you have all the data you need when it's time to order.

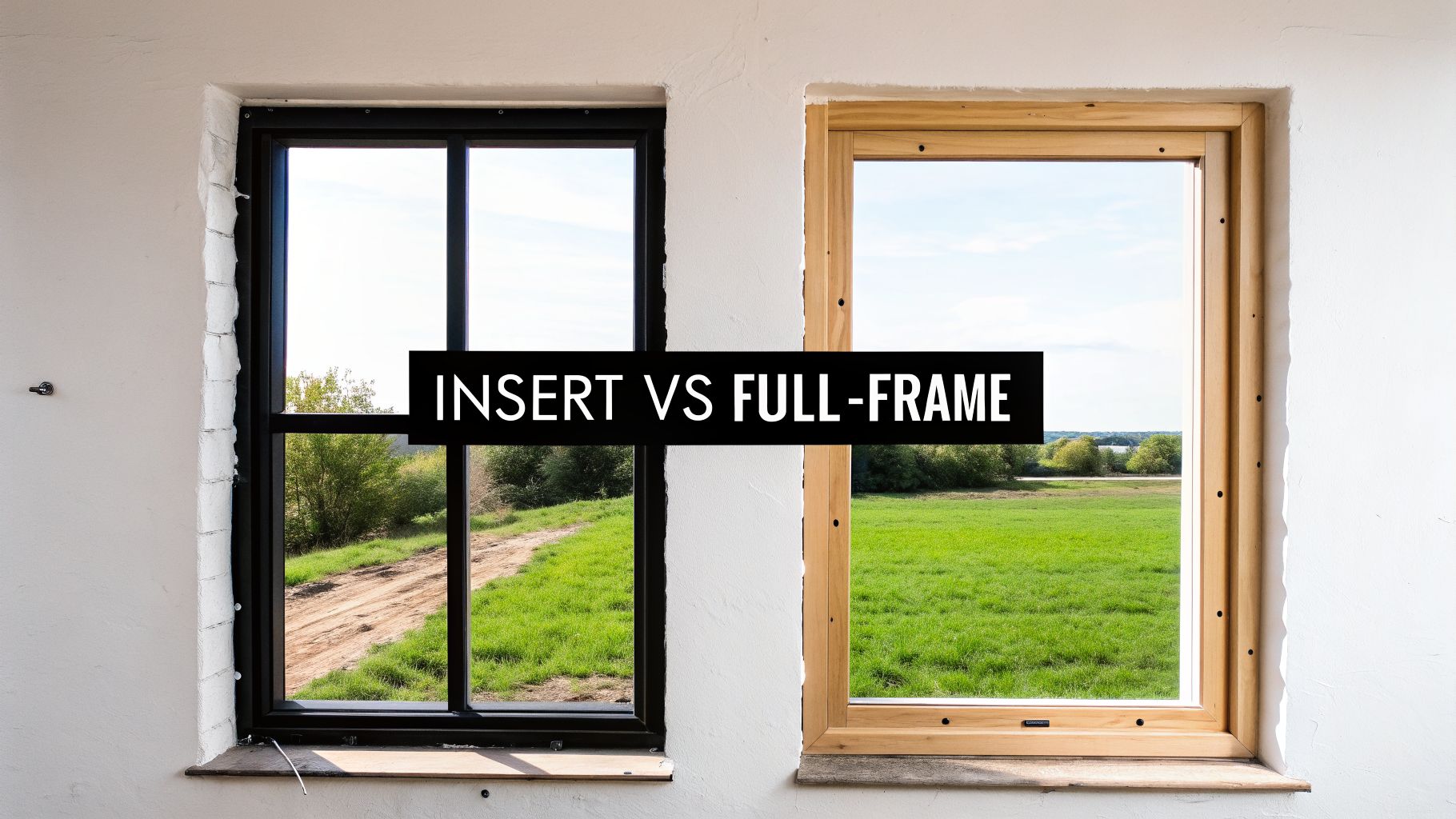

How to Measure for Different Window Replacement Types
Before you even touch your tape measure, the most important question you need to answer is what kind of replacement you're doing. Not all window projects are the same, and your measuring technique will change completely depending on whether you're planning an insert replacement or a full-frame replacement.
Getting this wrong is one of the most common—and costly—mistakes I see homeowners make.
An insert replacement, which you might also hear called a retrofit, is the more straightforward option. You’re essentially popping a new window unit into the home’s existing window frame. This works great if your current frame is in good shape—it’s square, solid, and shows no signs of rot or water damage.
A full-frame replacement, on the other hand, is a much bigger job. This involves tearing everything out right down to the studs: the old window, the frame, the interior trim, and the exterior trim. You’ll choose this route when the old frame is compromised, or if you want to install a completely different size or style of window.
Measuring for an Insert (Retrofit) Replacement
When you're installing an insert, your new window has to fit perfectly inside the old frame. That means all your measurements will be taken from the inside of the existing frame. We'll use the same three-point measuring method, but the reference points are critical.
You're measuring from jamb-to-jamb (for width) and from the head down to the sill (for height).
- Width: Measure the gap between the side jambs at the top, middle, and bottom.
- Height: Measure from the underside of the head jamb down to the highest point of the sloped sill. Take this measurement on the left, in the center, and on the right.
Always circle the smallest of your three width measurements and the smallest of your three height measurements. These are the final numbers you'll use. Don't be tempted to average them—you need the window to fit at its tightest point.
The goal with an insert measurement is to capture the exact dimensions of the pocket your new window will slide into. A snug, accurate fit is everything for creating a proper weather seal.
Measuring for a Full-Frame Replacement
For a full-frame project, you can forget about the old window entirely. Since it's all coming out, you need to measure the actual hole in the wall, what we call the rough opening.
This does require a bit of demolition first. You'll have to carefully pry off the interior and exterior trim (the casing) to expose the wall studs on the sides and the header beam across the top. Once you can see the framing, you’re ready to measure.
- Rough Opening Width: Measure from the inside face of the stud on the left to the inside face of the stud on the right.
- Rough Opening Height: Measure from the bottom of the header down to the top of the sub-sill at the bottom of the opening.
Your rough opening dimensions will obviously be much larger than the old window. That's because manufacturers build full-frame windows slightly undersized to leave a gap for shimming the unit perfectly level and plumb, and for adding spray foam insulation.
Whether you're swapping out an entire unit or just need to order parts for window screen repair services, using the right measuring technique for the job is non-negotiable. It truly is the difference between a project that goes smoothly and one that becomes a massive headache.
Standard Sizes vs. Custom Orders: Which Is Right for You?
I get this question all the time from homeowners: "Can't I just grab a standard-size window from the big-box store?" It's a fair question. New construction projects use off-the-shelf sizes all day long because it keeps things simple and affordable. But when you're replacing old windows, the game changes completely.
Over the years, houses settle and shift. The perfectly square opening that was framed decades ago is probably not so perfect anymore. This doesn't automatically mean you're stuck with a pricey custom order, but it does mean you have to be realistic.
When a Standard Size Window Might Work
So, you've taken your three measurements for height and width. Now, look closely at those numbers. Is the difference between your smallest and largest reading less than 1/4 inch? If it is, you're likely in luck. A small variance like that is manageable for a skilled installer, who can use shims to create a plumb, level, and snug fit for a standard-size window.
The trick is to always work from your smallest measurement. When you head to the store or shop online, you'll use that smallest width and smallest height. Be sure to round that number down to the nearest 1/8 inch. So, if your tightest width measurement is 35-3/4 inches, you should be looking for a window unit designed for a 35-5/8 or even a 35-1/2 inch rough opening. That little bit of wiggle room is your best friend during installation.
Here's a piece of advice from my years in the field: While builders love standard sizes, we find that only about 60% of replacement jobs can actually use a stock window without some serious finagling. This is exactly why learning how to measure window size for replacement with precision is non-negotiable.
The Case for Custom-Sized Windows
On the other hand, if your measurements are all over the place—with more than a 1/4 inch difference—or if your diagonal check proves the opening is badly out of square, don't fight it. A custom-ordered window is the right call.
Trying to cram a standard window into a crooked opening is a surefire way to end up with problems. You’ll have big, awkward gaps that are a nightmare to insulate, leading to the very drafts and energy loss you're trying to fix. This is especially common in older homes; some studies show that significant irregularities pop up in as many as 25% of heritage properties, making custom sizing a flat-out necessity.
Sure, standard sizes like the classic '2020' (a 24×24 inch window) have been staples since the 1950s, but they were designed for a different world. For today's replacement projects, you need a perfect jamb-to-jamb fit (don't include the trim!) to get it right. You can discover more insights about window measurement standards and see how they’ve evolved for modern replacements.
In the end, paying a bit more for a custom-sized window isn't just a luxury; it's an investment. It buys you a guaranteed perfect fit, an airtight seal, and a much smoother installation, saving you from the chronic headaches of a "close enough" job.
Knowing When to Step Back and Call a Pro
Let's be honest: while measuring for a new window is a manageable DIY task for many, there are times when you absolutely should put the tape measure down and pick up the phone. Knowing your limits is just as crucial as knowing how to measure. Think of it less as admitting defeat and more as making a smart, strategic decision for your home.
Some situations are just too tricky or carry too much risk for a weekend project. If you run into any of the following red flags, your next move should be to consult an expert, not to try and measure again.
Telltale Signs You Need an Expert
A major warning sign is when your measurements are all over the place. If you take your three width or height measurements and they're off by more than 1/4 inch, that's a problem. It tells you the opening isn't square, and a standard window won't fit without some serious work. A pro needs to look at it to see if it’s a simple shimming fix or if the frame itself needs to be rebuilt.
The same goes for your diagonal measurements. If they're way off, it confirms the opening is badly out of square. Trying to jam a perfectly rectangular window into a crooked hole is a recipe for disaster—you'll end up with broken seals, drafts, and a window that just doesn't work right.
But the biggest showstopper of all? Any sign of moisture. If you see water stains, feel soft spots, or find outright rot in or around the window frame, stop immediately. This isn't a window problem anymore; it's a potential structural issue that needs a specialist to diagnose and repair before a new window even enters the picture.
Finally, some window types are just inherently complex and are almost always a job for a professional installer from the get-go. These include:
- Bay and Bow Windows: These are basically small additions to your house. They're heavy, structural, and require specialized support and flashing to prevent leaks and sagging.
- Custom Architectural Shapes: Think arches, circles, octagons, or any other cool, non-rectangular shape. The precision needed to measure and install these is on a completely different level.
Bringing in a professional for these scenarios isn't giving up. It's the surest way to protect your investment and guarantee the job is done perfectly the first time.
Answering Your Final Measurement Questions
You've got your tape measure out, you've followed the guide, but a few nagging questions are probably still bouncing around in your head. That’s completely normal. Let's tackle a few common issues that I see trip people up right before they’re ready to place an order.
What if My Measurements Are a Little Off?
Here’s a hard truth: in window replacement, there's very little room for error. A small mistake of just 1/4 inch can create a real headache.
If the window you order is too small, you’re left with wide gaps. Sure, you can fill them with foam, but they’re tough to seal perfectly. This often leads to the very drafts and energy loss you were trying to fix in the first place.
On the flip side, a window that’s even a hair too big is a much bigger problem. It just won't fit. This can mean cutting into your home's actual wall framing, a costly and complicated fix you definitely want to avoid. This is why the old carpenter’s saying, "measure twice, cut once," is so critical here—or as I like to say, "measure three times, order once."
A piece of advice I always give homeowners: learn to love rounding down. If your tightest measurement comes in at 35 and 9/16 inches, order your window at 35 and 1/2 inches. That tiny bit of wiggle room is your best friend during installation.
Should I Be Measuring From the Inside or the Outside?
This is a big one, and the answer is simple: for replacement windows, you always measure from inside the house.
Why? Because you're measuring the opening where the new window unit will actually live. You need the distance from the flat surface of one side jamb to the other for your width, and from the head jamb down to the sill for the height. If you measure from the outside, you’re almost guaranteed to include exterior siding, brick molding, or trim, which will give you numbers that are completely wrong for your order.
Do I Have to Take the Trim Off Before I Measure?
That all depends on what kind of replacement you’re doing.
For an insert or retrofit replacement—where you're just putting a new window into the existing frame—you leave all the interior trim (the casing) right where it is. Your measurements are taken between the old window jambs.
However, if you're doing a full-frame replacement, you absolutely have to remove both the interior and exterior trim. You need to get to the "rough opening"—the raw 2x4s of the wall—to get the true dimensions. If you're not even sure which type of project you have on your hands, that's a good signal it might be time to bring in a pro.
