Weatherstripping alone could save about $120 per season, and over ten years it could produce a 12.57 benefit-cost ratio. The right approach is to seal fixed gaps with caulk or low-expansion foam, seal moving parts with weatherstripping, and inspect the hidden rough opening between the window and framing.
Utah homes put window seals through demanding conditions. Freezing winter air, strong summer heat, dry conditions, and intense ultraviolet exposure can shrink, crack, or harden aging materials. A window may look tight from inside while air still moves through the rough opening behind the trim.
That's why how to weatherproof windows isn't just a matter of spreading caulk around visible edges. You need to identify the leak path, match the material to the window component, and avoid sealing methods that restrict operation or trap moisture.

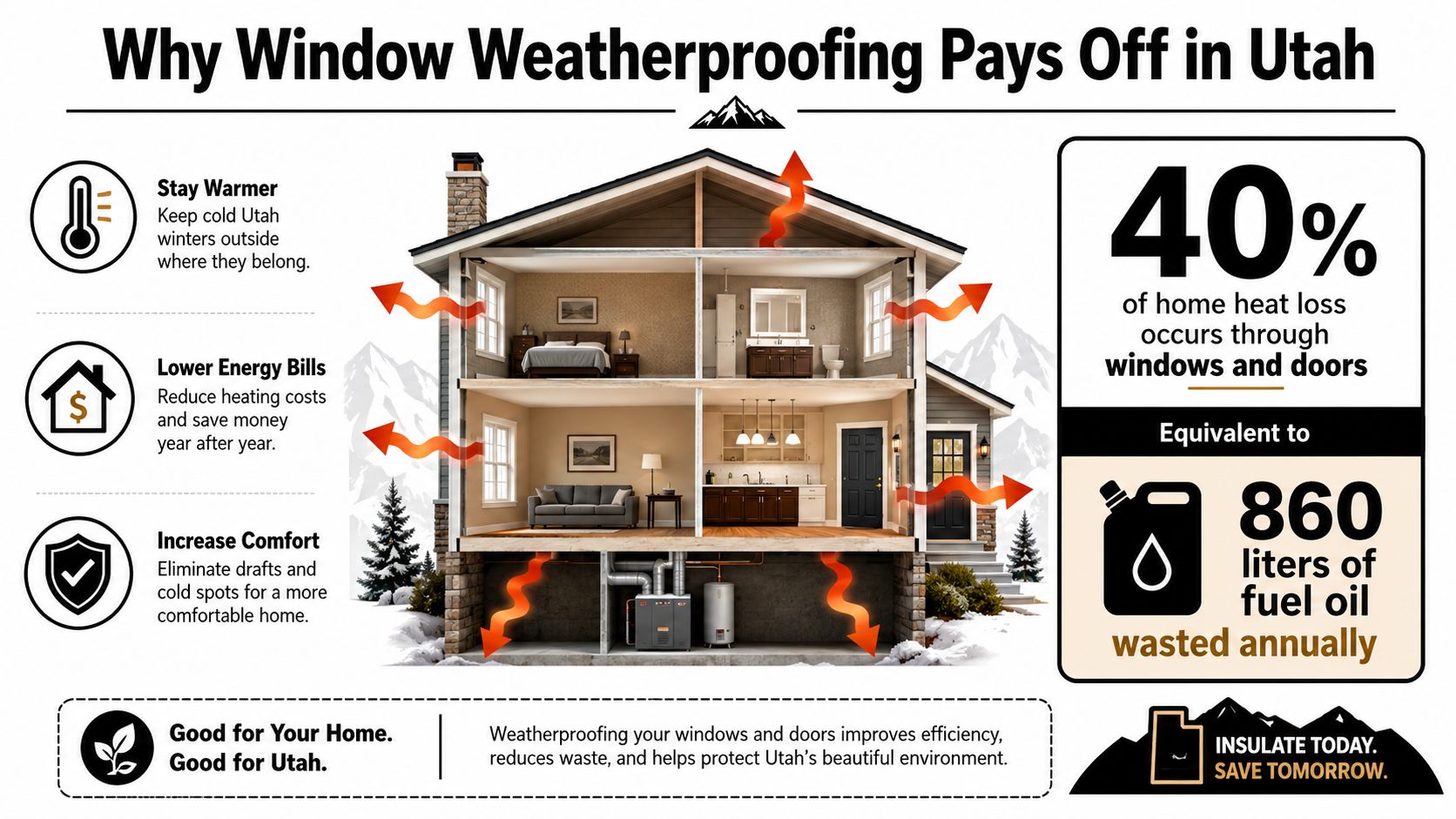

Why Window Weatherproofing Pays Off in Utah
A Canadian housing analysis illustrates the financial stakes. In an example house where air leakage through windows and doors represented 40% of heat loss from air change, that leakage equaled about 21,900 MJ per season, or approximately 860 liters of fuel oil. If weatherstripping stopped 60% to 65% of that loss, the estimated seasonal savings were about $120. The same analysis estimated that weatherstripping alone could cost about $100 over ten years and save $1,236 in present-value terms, creating a 12.57 benefit-cost ratio (Canadian housing analysis).
Those figures come from an example house rather than every Utah property, but the reasoning applies. Windows combine thin materials, moving joints, glass, framing, and perimeter seals in one opening. Every joint creates a potential air path, especially when old weatherstripping has compressed or exterior caulk has separated from the frame.
Why Utah windows need careful sealing
Temperature movement matters because different materials expand and contract at different rates. A flexible seal may continue accommodating that movement, while brittle caulk can split at the joint. Ultraviolet exposure also attacks exposed sealants and plastic components, particularly on south- and west-facing elevations.
Older windows deserve special attention. A National Park Service window retrofit study found that weatherstripping seals gaps at the head, sill, meeting rail, and vertical edges. Even the least-effective simulation case produced about 1% to 3% energy savings, while stronger retrofit combinations reached 15% to 30% across the cities studied (National Park Service window retrofit study).
The practical conclusion is straightforward. Weatherproofing is an energy measure, not merely a comfort treatment. It can reduce cold drafts, limit unwanted outdoor air movement, and help your heating and cooling equipment work against a tighter building envelope.
For broader ideas about efficient glazing and window upgrades, homeowners can view energy saving window resources before deciding whether sealing, film, storm treatments, or replacement makes sense.
Diagnosing Drafts and Finding the Real Leaks
Start with diagnosis, not sealant. On a cold, windy day, close and lock the window, then move the back of your hand slowly around the sash, meeting rail, frame, trim, and sill. A cool sensation at one point gives you a starting location, but it doesn't always identify the full path the air is taking.
A candle, incense stick, or smoke pencil can make air movement easier to see. Keep the flame or smoke away from curtains and combustible materials, and don't use an open flame near solvents, spray foam, or other flammable products. Move the test slowly, because a strong draft can disturb the flame before you reach the exact gap.
Check the window in layers
Inspect the assembly from the moving sash outward. Look for cracked or missing caulk, gaps at corners, loose trim, deteriorated foam, daylight around the frame, and weatherstripping that no longer springs back after compression.
Use this checklist:
- Operable sash: Check whether the sash closes evenly and locks firmly.
- Meeting rail: Look for a visible gap where the upper and lower sections meet.
- Side tracks: Inspect sliding contact points for worn pile or flattened seals.
- Stationary trim: Look for failed caulk where trim meets drywall, plaster, masonry, or the frame.
- Sill and exterior perimeter: Check for cracked sealant, staining, soft wood, or gaps.
- Rough opening: Investigate the concealed space between the window unit and the surrounding framing.
Practical rule: If sealing the visible trim doesn't stop the draft, don't keep adding caulk. The leak may be behind the trim.
That rough opening is the failure point many DIY repairs miss. A Salt Lake City homeowner might seal the interior casing carefully, see a clean bead, and still feel cold air because the space between the window frame and wall structure was never sealed. DOE and ENERGY STAR guidance specifically addresses this gap, recommending backer rod, caulk, or low-expansion foam, while warning that fibrous insulation alone doesn't stop airflow (DOE and ENERGY STAR rough-opening guidance).
If you're comparing repair against replacement, understanding double pane window costs can help frame the decision. A window with failed seals, warped components, or concealed water damage may need more than surface weatherproofing.

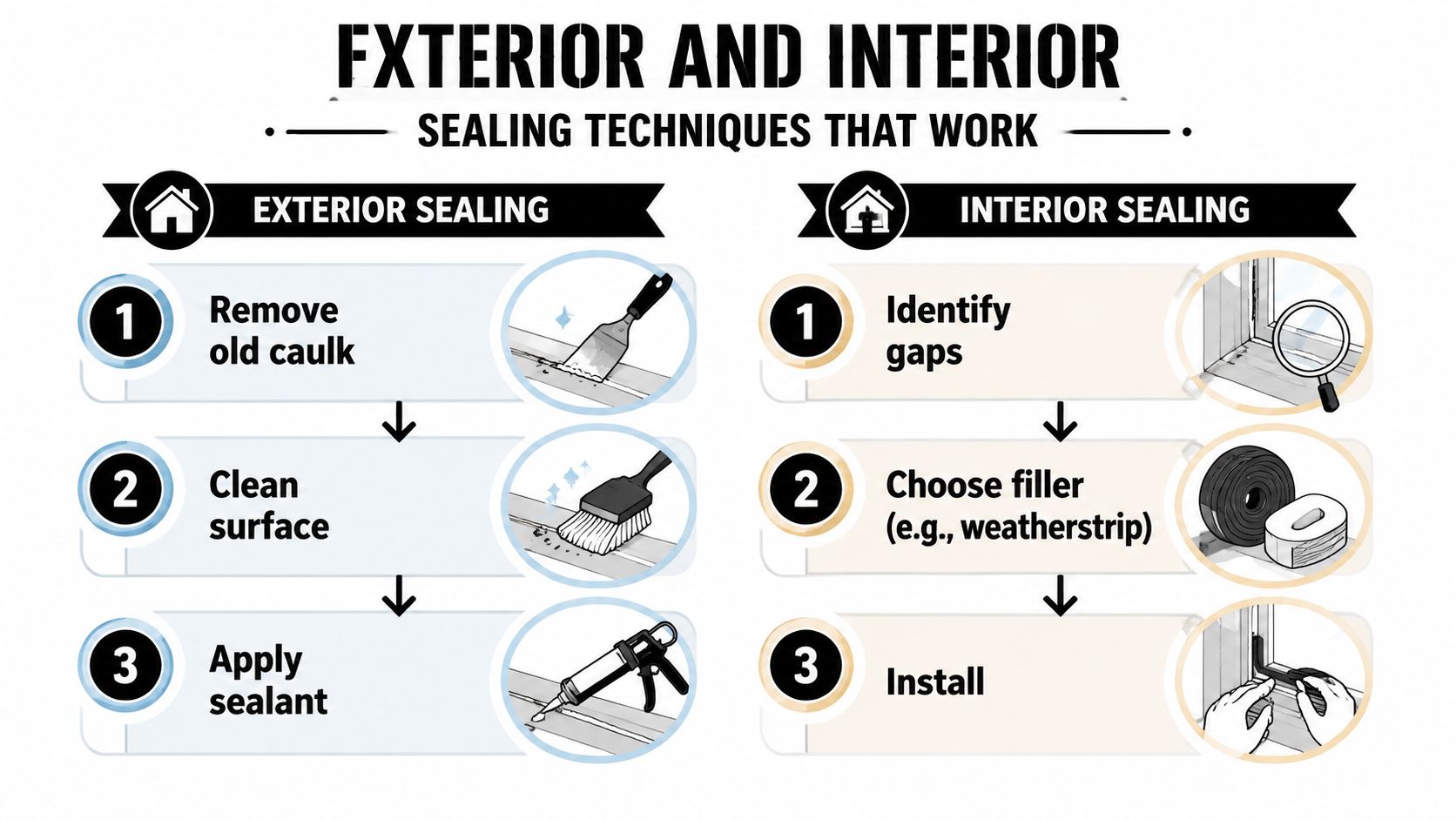

Exterior and Interior Sealing Techniques That Work
The basic division is simple. Caulk and foam seal stationary gaps. Weatherstripping seals moving parts. The U.S. Department of Energy says caulk belongs around fixed components, while weatherstripping belongs on operable components, and notes that these measures often pay back in one year or less (U.S. Department of Energy air-sealing guidance).
Exterior perimeter work
Remove failed exterior caulk with a sharp scraper or utility knife. Don't cut into the frame, siding, flashing, or surrounding finish. Brush away dust, then clean the joint with a compatible cleaner and let it dry fully.
Wide or deep joints need more than a thick bead. Press in backer rod first so the sealant bridges the gap without filling the entire cavity. This gives the caulk a controlled shape and helps it remain flexible as the frame and wall move.
Apply an exterior-rated sealant with a steady caulk gun. Silicone generally handles movement and exposure well, while paintable acrylic products can suit areas where the finish must match adjacent trim. Tool the bead with a damp finishing tool or gloved finger, then remove masking tape before the surface skins over.
Don't seal over drainage paths or weep openings. Water that enters a window system needs a route back out. Blocking those paths can create concealed moisture damage even when the exterior looks neat.
Interior frame and rough-opening work
Interior trim gaps can be sealed with paintable caulk when the joint is narrow and stable. For a concealed rough-opening gap, remove a small section of trim only when you can do so safely and without damaging the finish. Fill the space with low-expansion or no-expansion window-and-door foam, and test the product first.
Standard expanding foam can bow a window frame and interfere with sash movement. Building guidance also cautions that sealants should remain permanently flexible, foam must not distort the assembly, and installers should test products before applying them throughout the opening (building air-sealing guidance).
Sealing the moving parts
Clean the contact surface before installing weatherstripping. Adhesive-backed foam needs a dry, dust-free surface, while mechanically retained vinyl, silicone, or metal products need accurate measurement and careful fitting.
Close the window gently after installation. If the sash binds, the material is too thick, misaligned, or installed in the wrong channel. Let paintable caulk cure according to the product instructions before painting, and keep the window operable while you confirm the seal doesn't interfere with locking hardware.
Choosing the Right Weatherstripping for Your Windows
Weatherstripping has to seal without making the window difficult to operate. In Utah, the material also needs to tolerate cold mornings, hot glass, dry air, and repeated ultraviolet exposure.
Foam tape is inexpensive and easy to install. It works well for low-use windows and small, consistent gaps, but it compresses and loses resilience over time. I avoid relying on adhesive-backed foam for a high-use window that gets opened frequently, especially when the mounting surface is dusty or exposed to direct sun.
Vinyl bulb seals suit many double-hung and sliding windows. The hollow profile compresses against the mating surface and can provide a cleaner fit than flat foam when the channel and gap are consistent. Vinyl is practical, but it can become less flexible as it ages.
Silicone bellows are a strong choice where temperature movement is substantial. Their flexibility helps them accommodate changing gaps, and they suit casement, awning, and other windows where the sash presses against a perimeter seal.
Metal compression weatherstripping offers a durable, mechanically fastened solution for older wood windows. It can last well when installed accurately, but it requires careful fitting and may be more visible than modern flexible products.
| Weatherstripping Type | Best For | Durability | Cost Range |
|---|---|---|---|
| Foam tape | Low-use windows and small gaps | Lower, because it can compress | Budget |
| Vinyl bulb | Double-hung and sliding windows | Moderate | Moderate |
| Silicone bellows | Casement and temperature-exposed windows | High when correctly fitted | Moderate to higher |
| Metal compression | Older wood windows and restoration work | High with proper installation | Moderate to higher |
Measure the actual gap rather than choosing material by appearance. A thick strip can prevent the sash from closing, while a thin strip won't compress enough to block airflow. Also check whether the window manufacturer provides a replacement profile, since a matching seal often fits more reliably than a generic substitute.

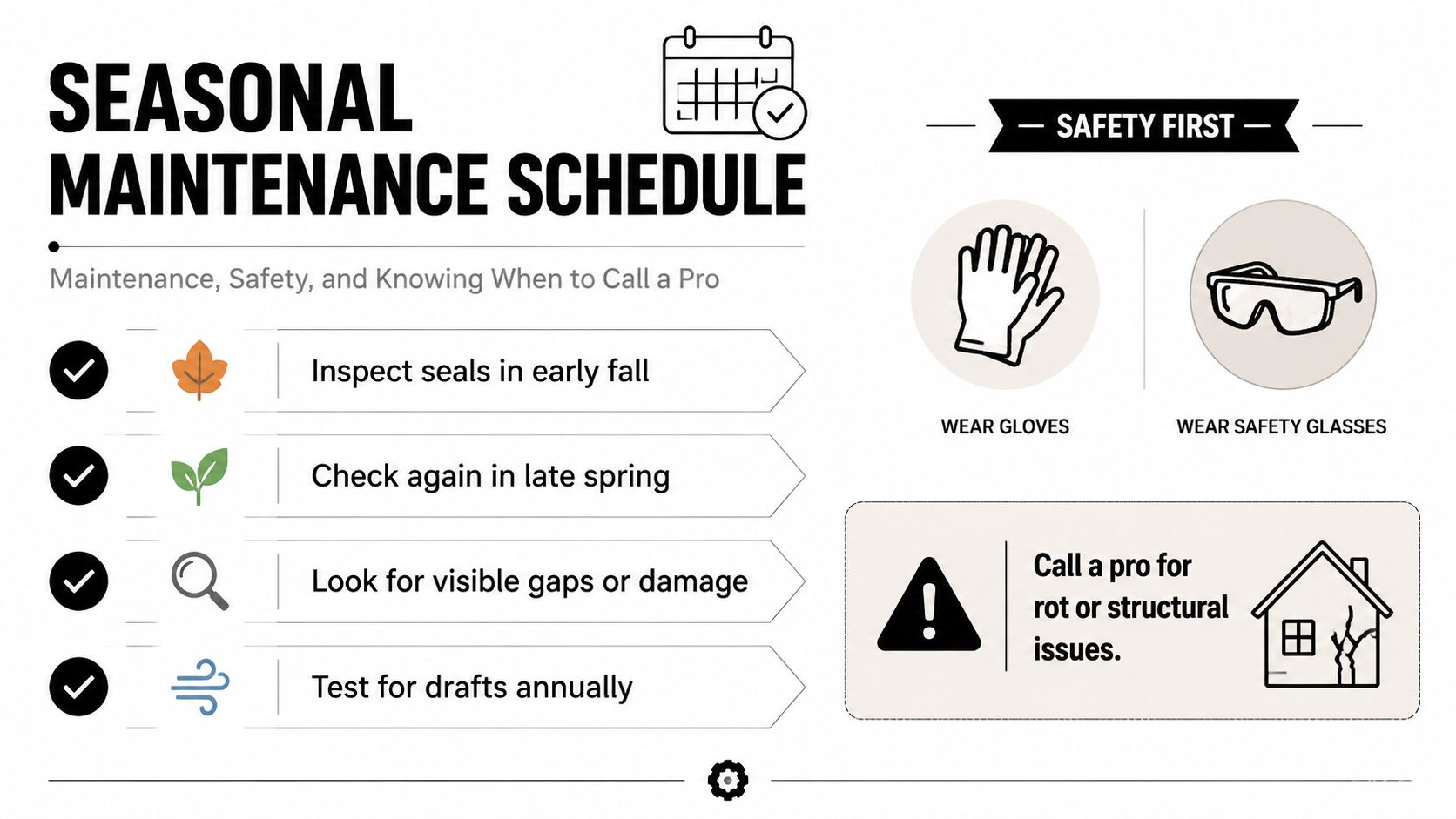

Maintenance, Safety, and Knowing When to Call a Pro
Window sealing should be inspected as part of seasonal home maintenance. Check the seals in early fall before the heating season, then inspect them again in late spring after winter movement and moisture exposure. Look for crumbling caulk, separated corners, hardened weatherstripping, loose trim, and changes in how the sash closes.
Condensation between panes is different from surface condensation. If moisture appears inside an insulated glass unit, the factory seal may have failed. Caulking around the perimeter won't restore the insulating space, so replacement of the glass unit or the entire window may be more appropriate.
Know the boundary of DIY work
DIY sealing makes sense when the frame is sound, the gap is accessible, and the window operates normally. Wear gloves and eye protection when scraping old caulk, cutting foam, or working around deteriorated materials. Use stable ladders outdoors, and don't attempt upper-story work without proper fall protection.
Call a qualified window professional when you find:
- Rot or soft framing: Moisture damage can extend behind the trim.
- A warped frame: Foam or additional weatherstripping won't correct structural distortion.
- Repeated sash binding: The opening may be out of square or the frame may have shifted.
- Failed insulated glass: Fogging between panes indicates a sealed-unit problem.
- Hidden rough-opening leaks: Trim removal and verification may be necessary.
- Multiple failing windows: A whole-house assessment can compare targeted repair with replacement.
Professional verification adds useful quality control. HUD materials state that professional air sealing around windows and doors should be verified with blower-door testing. An Oak Ridge National Laboratory weatherization evaluation reported statistically significant reductions in air leakage, with general door and window caulking or weatherstripping the most frequent measure; the study reported an average sample reduction of 164 cfm50 and showed that blower-door-guided air sealing was used in 46% of houses in one program year and 63% in another (Oak Ridge National Laboratory weatherization evaluation).
For broader exterior upkeep ideas, this Flagstaff exterior maintenance checklist offers a useful seasonal reference, even though Utah homes face their own local exposure patterns.
Key Takeaways and Your Weatherproofing Checklist
A finished weatherproofing job should pass four checks: the draft source is identified, the hidden rough-opening seal is addressed, the window still operates normally, and the repair can tolerate Utah's sun, freezing temperatures, and rapid seasonal swings. A surface bead of caulk may look neat while outside air continues moving behind the casing.
Use this shorter checklist to verify the work:
- Confirm the leak path: Test on a cold or windy day, then distinguish air entering through the sash from air bypassing the frame at the wall opening.
- Prioritize the rough opening: If sealing visible trim does not stop the draft, inspect behind the casing. Use compatible sealant or low-expansion window-and-door foam only where the cavity and drainage design allow it.
- Match materials to the joint: Use flexible exterior caulk on exposed stationary joints and weatherstripping designed for the window profile at moving contacts. The sash must still open, close, and lock without binding.
- Protect the frame and drainage: Do not block weep paths or overfill cavities. Excess foam can bow a frame, while blocked drainage can trap water behind trim.
- Set a repair limit: Stop adding caulk when rot, a warped frame, failed insulated glass, recurring leaks, or the same defect across several windows points to a larger repair or replacement decision.
The rough-opening seal deserves priority because it sits behind the finish materials and is easy to miss. Correcting that concealed gap lets the exterior sealant and sash weatherstripping work as designed instead of masking a wall-to-window failure. In Utah's high-UV climate, use products rated for exterior exposure and inspect them after strong sun and freeze-thaw cycles.
Repair is not always the right long-term investment. Compare targeted sealing with improved glazing, storm treatments, insulation film, or replacement based on the window's condition, solar exposure, and expected durability. Transparent insulating materials are still an area of product development, not a substitute for correcting air leakage first. A professional assessment can separate a serviceable window from an assembly that will keep consuming repair time.
Superior Home Improvement offers window replacement and installation for Utah homes. Its published information describes weather-tight installation using flashing, low-expansion foam, exterior-grade caulk, and insulated glass, along with 50+ years of industry experience and an Energy Conservation Program pairing high-performance windows with insulation strategies and UV-resistant materials.
Professional verification can add useful quality control when leakage is difficult to locate. HUD materials state that professional air sealing around windows and doors should be verified with blower-door testing. An Oak Ridge National Laboratory weatherization evaluation reported statistically significant reductions in air leakage, with general door and window caulking or weatherstripping the most frequent measure; the study reported an average sample reduction of 164 cfm50 and showed blower-door-guided air sealing in 46% of houses in one program year and 63% in another (Oak Ridge National Laboratory weatherization evaluation).
Superior Home Improvement can inspect drafty windows, recommend targeted sealing or replacement, and install energy-efficient windows and patio doors suited to Utah conditions. Visit Superior Home Improvement to request a consultation.
