If you're reading this, you're probably standing in front of an older window that fogs in winter, bakes the room in July, or wastes one of the best views on your property. In Salt Lake City, a picture window isn't just about light and scenery. It has to survive big temperature swings, hard sun, wind, snow, and the kind of freeze-thaw cycle that exposes every shortcut in the install.
A lot of homeowners focus on the glass package first. That's understandable. In Utah, many should be looking at triple-pane options for comfort and seasonal efficiency. But glass alone doesn't fix a bad install. A premium unit set out of square, flashed in the wrong sequence, or dropped onto a sloped sill will still leak air, trap water, and fail early.
Good picture window installation is mostly about precision. The opening has to be measured correctly. The sill has to be prepared for the house you have, not the one a generic online guide assumes. The frame has to be shimmed at the right points, fastened without distortion, and flashed so gravity works for you instead of against you.
Planning Your Picture Window Project
Most picture window projects start with the same goal. Better light, a wider view, and a cleaner look than a multi-panel setup. Those are good reasons to replace one. The practical side starts when you price the unit, measure the opening, and decide how far you want to push thermal performance for Utah's climate.
A standard-size replacement can be straightforward. A large opening facing strong sun or winter exposure usually isn't. Bigger glass means more weight, more framing stress, and less room for sloppy measuring.
Start with the opening, not the catalog
For insert-style replacement work, the first number that matters is the daylight opening. That means measuring the narrowest dimensions of the existing opening and not guessing based on trim or the visible glass alone. If the replacement unit is ordered too tight, it can bind in the frame before you ever get to shimming.
The discipline here is simple. Measure carefully, verify the tightest width and height, and plan around the actual opening condition. In older Salt Lake homes, especially where settling has occurred, the top, middle, and bottom often don't match.
Practical rule: A picture window should fit the opening with controlled clearance. A unit that's too tight forces the installer to fight the frame, and that usually shows up later as seal stress, drafts, or trim that never sits right.
Budget for size, labor, and performance
The national average cost to replace a single standard picture window is about $600, with a typical range of $350 to $850 for most residential installs, while a large 96-inch by 72-inch picture window can reach $1,400, custom-shaped or custom-dimensioned units often exceed $1,000 to $1,200, and labor alone typically makes up 25% to 50% of the installation price according to this picture window cost breakdown.
That range is why homeowners get confused when one quote seems reasonable and another feels high. They may not be pricing the same scope. A basic replacement in an easy-access wall is one job. A large triple-pane unit on an upper level with trim repairs and a sloped sill is another job entirely.
What Utah homeowners should weigh before ordering
A good planning conversation usually includes these decisions:
- Glass package: South- and west-facing openings in Utah often justify moving beyond basic insulated glass. Triple-pane can make sense when comfort is the priority and you want better control over summer heat gain and winter interior chill near the glass.
- Frame profile: Thicker, more sturdy frames can help with rigidity on larger openings, but they also reduce sightline slightly. That's a trade-off worth discussing before ordering.
- Interior comfort: Some homeowners also compare glazing upgrades with options like commercial window tinting North Atlanta to understand how solar control strategies affect glare and heat. Different climates need different solutions, but the comparison helps clarify what glass alone can and can't do.
- Access and finish work: Exterior height, interior casing changes, and siding or stucco tie-in can move labor well beyond the simple replacement category.
A well-planned project doesn't feel dramatic on install day. That's the point. The right unit shows up at the right size, with the right accessories, and the crew isn't improvising around a measurement error.

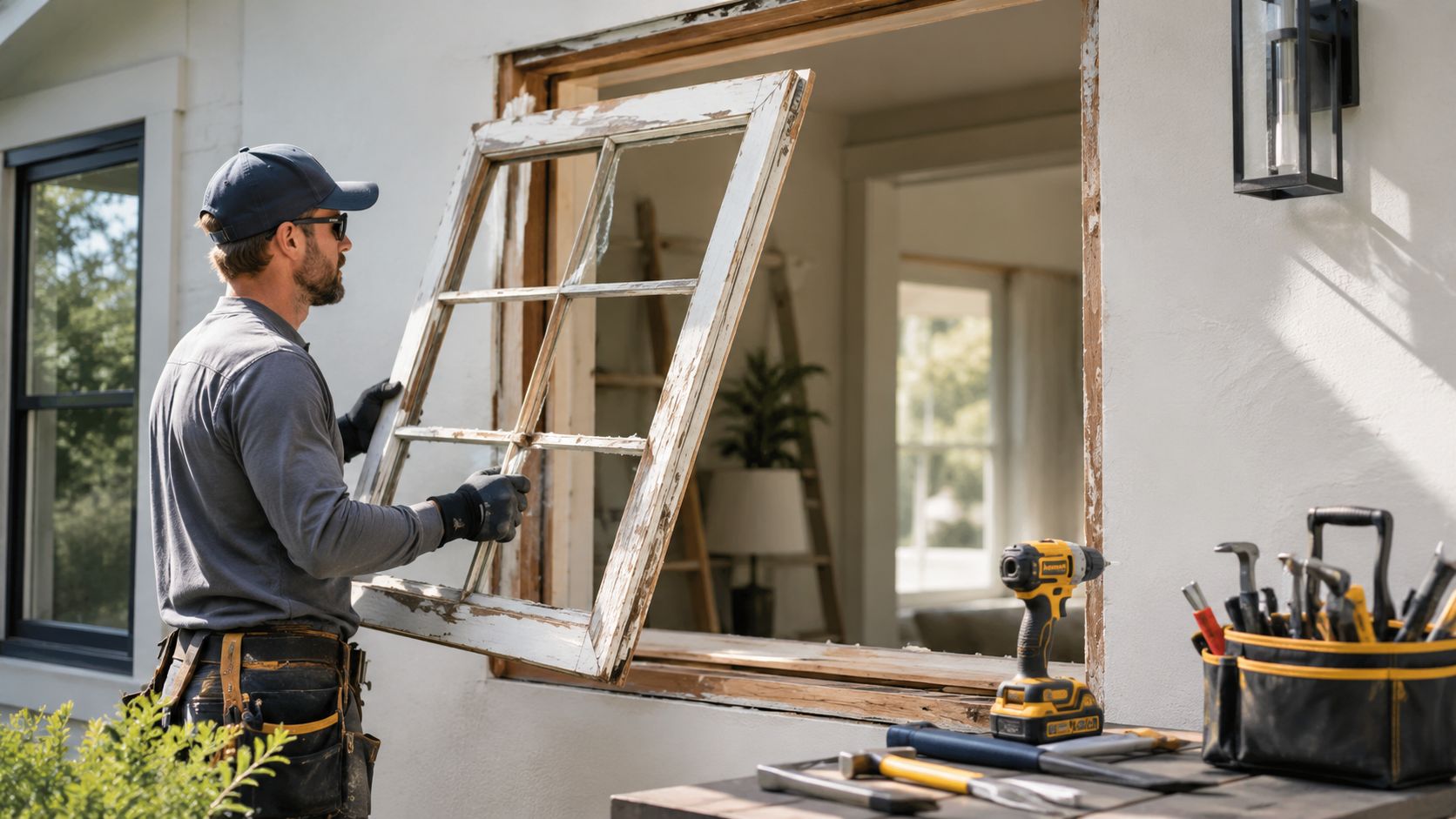

Removing the Old Window and Preparing the Opening
Taking out the old unit is where a lot of hidden conditions reveal themselves. What looks like a simple replacement from inside the room can turn into rotted trim, a bowed sill, brittle flashing, or framing that's been carrying moisture for years. Removal should be controlled, not aggressive.
Start with protection. Cover the floor, move furniture, and tape off nearby finishes if you're working from the interior. Outside, protect landscaping and set ladders so you're not twisting the frame as you pry.
Remove the old unit without wrecking the opening
The basic tool set is familiar. Utility knife, oscillating multi-tool, pry bar, drill/driver, flat bar, glazing scraper, and shims. The sequence matters more than the tools.
- Cut sealant first. Break the paint and caulk lines at interior stops, casing, and exterior trim before you pry anything.
- Locate fasteners. Older windows may be screwed through side jambs, nailed through fins, or trapped behind trim details.
- Pry in stages. Work evenly around the frame instead of forcing one corner. Twisting the old unit against the opening can damage the surrounding wall and create extra repair work.
- Lift with control. Large picture windows are awkward because the glass weight doesn't forgive bad handling.
Inspect the opening like a carpenter, not just an installer
Once the old frame is out, the opening needs more than a quick sweep. Check the sill, side jambs, and head for softness, staining, cracked sheathing, and out-of-square framing. If the structure is compromised, installing over it only hides the problem.
Use a level and straightedge on the sill. In many older Salt Lake City homes, especially historic stock, the sill isn't flat. It's sloped or worn, and that's where generic window advice falls apart.
A manufacturer guide for insert replacement notes that in homes with sloped sills, common in Utah's older housing, sill angle fillers and head expanders have to be installed correctly because skipping or mishandling them often leads to water pooling and seal failure, especially in retrofit work where major structural changes aren't planned, as shown in this insert replacement installation guide.
A sloped sill isn't a minor imperfection. It's a drainage and fit problem that has to be solved before the new window goes in.
Where older-home experience matters
This is also where homeowners should recognize the difference between replacement types. An insert picture window in a finished opening is a different animal than a full cut-in or structural opening change. If you're comparing scope, it can help to review work that deals with wall openings and drainage details, such as basement egress window installation, because it highlights how much proper opening prep affects long-term performance.
If the sill is sloped, the fix isn't stuffing more caulk under the frame. The sill angle filler has to be cut and fitted so the window sits correctly against the stool and sheds water the way the system was designed to.
Setting Shimming and Securing the New Window
This part looks simple from the driveway. Lift the window, set it in place, run screws, done. In practice, precision decides whether the glass package stays happy for years or starts showing stress soon after the install.
Dry-fit the unit first. Don't open sealant tubes until you've confirmed the frame enters the opening cleanly and the accessory stack, including any head expander or sill filler, matches the field conditions.
Dry fit and confirm clearances
The frame size has to be based on the actual opening, not the trim reveal. For this type of installation, the narrowest opening dimensions matter most. The technical guidance is to deduct 1/4 inch from both width and height from the narrowest opening dimensions so the frame fits without binding, according to this picture window installation document.
That clearance gives you room to position the unit instead of forcing it. It also leaves space for proper shimming and sealing. If the window only goes in with pressure, the job is already off track.
Set the frame and shim the right points
Before the unit is inserted, any required sealant at the head expander or related interface needs to be applied exactly as the product calls for. Then the window is placed, centered, and checked for plumb, level, and square.
This is the point where many installs are compromised. Installers sometimes toss in shims wherever the gap looks widest, then cinch the screws until the frame looks tight. That can rack the unit and load the insulated glass assembly unevenly.
A better process looks like this:
- Place shims at the pre-drilled screw holes. That's where the frame needs support before fastening.
- Check plumb side to side. Don't assume the opening is true because the exterior trim looks straight.
- Verify level at the sill support plane. On a retrofit, that means level relative to the prepared setting surface, not the old distorted trim.
- Measure corner to corner. Equal diagonals tell you the frame is square.
If a picture window needs force to become square, something upstream is wrong. Fix the opening or the shim stack. Don't bend the frame to fit the house.
The same installation guidance warns that if shims aren't placed at the pre-drilled screw holes and the unit isn't shimmed perfectly plumb, level, and square, the window can develop operational stress that leads to seal failure and condensation issues within 1 to 2 years.
Fasten without distorting the frame
Once the frame is supported correctly, run the fasteners in a controlled sequence. Snug them. Recheck alignment. Then tighten just enough to secure the unit without bowing the jambs or head. Overdriving screws is one of the fastest ways to turn a good fit into a stressed fit.
A few habits make this cleaner:
| Checkpoint | What you're looking for |
|---|---|
| Frame reveal | Even margin around the visible edge |
| Shim compression | Firm support, not crushed plastic or cedar |
| Corner alignment | No twist as screws are tightened |
| Glass appearance | No sudden change in reflection lines after fastening |
For homeowners evaluating contractors, this is one area where product support can matter. Some Utah firms, including Superior Home Improvement, install energy-focused picture windows with manufacturer-specific procedures and accessory details rather than using a one-method-fits-all approach. That's what you want to hear in the field: process, not slogans.

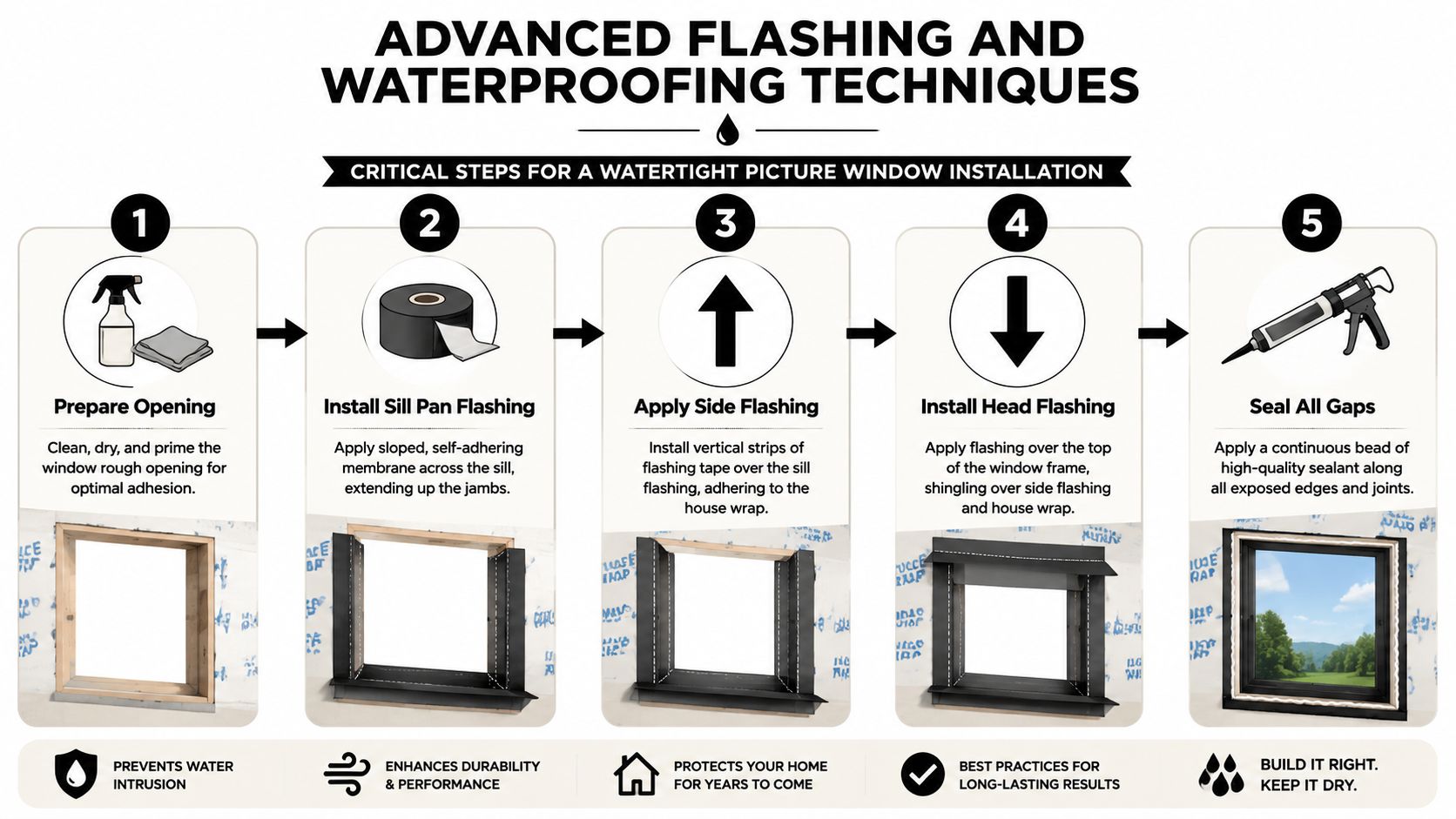

Advanced Flashing and Waterproofing Techniques
Water management decides whether a picture window installation lasts. Not the sales pitch. Not the glass label. Not the trim profile. If the flashing sequence is wrong, the wall can take on water even when the window itself is brand new.
Most serious window leaks aren't dramatic on day one. They show up later as staining, musty wall cavities, peeling interior paint, or trim that slowly swells. By then, the original mistake is hidden behind siding and casing.
The sequence can't be improvised
The standard is simple. Flashing goes bottom first, then sides, then top so each upper layer laps over the one below it and water sheds outward with gravity. Reverse that order and you've created places where water can track behind the weather barrier.
Field guidance tied to installation practice notes that improper flashing sequencing is the leading cause of water intrusion in new window installations and accounts for over 60% of warranty claims related to moisture damage, with the required sequence being bottom, sides, then top, as explained in this flashing and fastening reference.
What works in Utah weather
Utah doesn't test window installs with constant rain the way some regions do. It tests them with snow, driven wind, freeze-thaw movement, intense UV exposure, and sudden seasonal swings. That means the flashing system has to do two things at once. Block bulk water from entering, and still allow incidental moisture to drain.
Here's the field logic I trust:
- Create a drainage path at the sill. Water should have a way out if it gets behind outer layers.
- Integrate with the house wrap. The flashing has to tie into the wall's weather-resistive barrier, not float as a separate patchwork fix.
- Protect the head. Top details take repeated weather hits, especially where snow sits and melts.
- Keep weep paths open. If the system includes drainage openings, don't bury them in sealant or paint.
A related roof opening discussion, what to know before installing a skylight, is useful because it reinforces the same building-science principle: water control depends on layered laps and drainage, not on trying to caulk everything shut.
The bottom-seal debate
Homeowners often ask whether the bottom of the flashing should be fully sealed. The confusion is real because guidance in the field can sound contradictory. On one hand, people want every edge sealed for peace of mind. On the other, drainage systems only work if trapped water can exit.
My practical position is this. Treat the window as part of a water-managed assembly, not a fish tank. Seal the areas intended to block wind and bulk water, but don't close off planned drainage paths at the sill or weep locations. If an installer's answer is "we caulk every seam everywhere," that's not reassurance. That's a red flag.
This walkthrough shows the principle in motion:
Water doesn't need a large opening. It only needs one bad lap, one blocked weep path, or one seam that traps it where it shouldn't stay.
Insulating Trimming and Final Finishing
Once the unit is set and flashed, the job shifts from structure to performance. Air sealing, trim work, and final sealant then determine whether the window feels finished or merely installed.
The space between the frame and the opening needs insulation, but not just any foam and not an aggressive fill. Too much pressure at the perimeter can distort the frame enough to create problems you don't see until later.
Insulate without bowing the frame
Use a low-expansion window and door foam, not a general-purpose high-expansion can. Apply it in controlled passes. Let it expand. Then come back and fill any missed areas rather than trying to pack the cavity in one shot.
A few habits matter here:
- Work in light lifts: Heavy application can overexpand and push against the frame.
- Keep the nozzle moving: Gaps seal better when the bead is consistent.
- Leave room for trim details: Foam should insulate the cavity, not ooze into every visible edge and create cleanup damage.
- Trim only after cure: Cutting too soon tears the foam and leaves voids.
Finish the interior so it stays stable
Interior extension jambs and casing should sit cleanly without forcing the frame. If the framing is irregular, scribe the trim or correct the substrate. Don't hide out-of-square conditions by pinning trim hard against the window body.
For paint-grade interiors, seal small trim joints carefully and keep the caulk line neat. For stained wood, the cuts and fit need to do the work because heavy sealant is obvious and sloppy.
Field note: The cleanest finished window usually comes from the best prep. Trim covers transitions. It shouldn't be used to disguise installation errors.
Seal the exterior with restraint
Exterior caulk is the final exposed line of defense, but it isn't the primary waterproofing system. That work was handled by the flashing layers underneath. The exterior bead should bridge the correct joints, tool smooth, and stop where drainage features need to stay open.
That means checking for weep paths before sealing trim details. It also means choosing a high-quality exterior sealant compatible with the frame and adjacent materials. Vinyl, fiberglass, aluminum-clad trim, fiber cement, and painted wood don't all behave the same.
A finished job should pass three simple tests:
| Finish area | What good work looks like |
|---|---|
| Interior perimeter | Even reveals, no bowed casing, no foam bleed |
| Exterior sealant | Continuous where needed, cleanly tooled, no blocked drainage |
| Sightline | Glass centered visually, trim lines consistent |
At this stage, the window should feel quiet, solid, and visually settled into the wall. No drafts at the perimeter. No trim under tension. No excess caulk trying to compensate for poor fit.
Hiring a Qualified Installer in Salt Lake City
A picture window can look simple because it doesn't open. That's exactly why homeowners underestimate it. Large fixed glass doesn't give the installer much margin. If the opening is off, the sill is sloped, or the flashing sequence is wrong, the finished unit may still look fine from ten feet away while problems start behind the wall.
Hiring well is mostly about risk control. You're not just buying labor. You're choosing who gets to make judgment calls about framing condition, slope correction, sealant placement, flashing integration, and finish details in a climate that punishes shortcuts.
What to ask before you sign
Use a short, direct screening list when you meet contractors:
- Licensing and insurance: Ask for current proof specific to Utah work.
- Local retrofit experience: Salt Lake homes vary a lot by age and construction style. You want someone who has dealt with settled openings, older trim assemblies, and weather exposure along the Wasatch Front.
- Manufacturer familiarity: Ask how they handle accessory components such as head expanders and sill angle fillers when conditions call for them.
- Written scope: The quote should identify the window type, glass package, trim scope, disposal, and who handles any repairs discovered during removal.
- Permit responsibility: If permitting is required, the contractor should say clearly who pulls it and how inspections are handled.
Read the quote for process, not just price
A weak estimate usually talks about the finished product and skips the method. A strong one explains what happens if the opening needs correction, how water management will be handled, what insulation approach will be used, and what trim work is included.
Look for specifics such as:
- Removal and disposal details
- Opening repair language
- Flashing and sealant scope
- Interior and exterior finish scope
- Warranty terms for labor and materials
If those items are vague, ask for clarification before work begins. That's easier than arguing about "what was included" after the old window is already out.
The Utah advantage is local judgment
National chains can install windows. Local judgment is something else. In Salt Lake City, the installer needs to think about winter exposure, elevation-related sun intensity, older housing stock, and whether the chosen glass package matches the orientation of the opening.
The best crews don't rely on one canned method. They adapt the install to the wall, the sill condition, the weather exposure, and the actual product requirements. That's what protects the glass, the framing, and your interior finishes over time.
If you're comparing bids for picture window installation in the Salt Lake area, ask each contractor to explain how they'd handle a sloped sill, where they shim a fixed unit, and how they preserve drainage at the bottom of the assembly. Their answer will tell you a lot.
