Three winters after a siding replacement, a homeowner notices a faint brown stain on the drywall beneath a bedroom window. The window still operates normally. The exterior caulk line looks intact, and the installer is long gone.
That pattern is common because the visible window is often not where the water first entered. A reverse lap in the weather-resistive barrier, a flat sill pan, or a head detail that depends on sealant instead of drainage can keep a wall looking dry until wind-driven rain, snowmelt, and seasonal movement expose the weakness. Proper window flashing is primarily a sequencing and geometry problem, not a tape-and-caulk product problem.
Why Most Window Leaks Start at the Flashing
The failure often begins before the window is set
On that bedroom wall, the window unit itself may have been sound. The trouble could have started when the installer cut the WRB around the opening and folded the upper corners in the wrong direction. If the upper layer sits behind the lower layer instead of over it, water has a route into the wall. A sill pan installed flat creates another problem. Instead of carrying incidental water toward the exterior, it lets water sit against the rough sill.
The final shortcut is usually a heavy bead of sealant at the face of the window. Sealant can close a joint, but it can't replace a sloped pan, a raised end dam, or a properly lapped WRB. Once the sealant shrinks, pulls away, or develops a small gap, the assembly has no dependable drainage path behind it.
Independent HUD building-science guidance identifies window flashing problems as the most common flashing code violation reported by surveyed code officials. In that guidance, 66% of the identified flashing problems were attributed to installation, rather than to the product alone or to a combination of product and installation issues, as documented in HUD's durability guidance. An earlier 2006 survey attributed 82% of flashing problems to installation, which reinforces the practical point: material selection matters, but workmanship and sequence remain decisive.
Primary and secondary water resistance
A reliable opening uses two different defenses:
- Primary resistance comes from sloped surfaces and shingle-lapped layers that shed water outward.
- Secondary resistance comes from flashing membranes, sealants, tapes, and the WRB, which limit entry and support drainage when water reaches a vulnerable joint.
The primary layer should do the draining. The secondary layer should manage the remaining exposure, not carry the entire burden. When a sealant bead becomes the only thing standing between the wall cavity and the weather, the installer has reversed those priorities.
Field rule: If water can't visibly drain outward from the sill and head, more sealant won't make the opening reliable.
Research summarized by building-science sources found several vulnerable paths around the window-wall interface. One review reported leakage through about 20% of field-tested window installations, while more than 50% of the window units experienced some form of water intrusion, and roughly 15% leaked directly through the sill frame. The review identified 6 possible leakage paths and tested more than 25 wall-window interface variations, details documented in this window pan flashing and air-sealing research summary.
Before blaming a window, inspect the opening like you'd inspect roof flashing after a storm. Water follows laps, slopes, corners, and breaks in continuity. The four-layer sequence that controls those paths is the sill pan, jamb flashing, head flashing, and WRB integration.
Materials and Tools You Actually Need
A proper installation starts with staging the right materials in the order they'll be used. Don't buy a roll of generic tape and assume it can solve every transition. Flashing has to adhere to the substrate, remain compatible with the WRB and sealants, and survive the exposure it will receive.
Stage the job by installation phase
For rough-opening preparation, stage seam tape, compatible self-adhered flashing tape, a utility knife, a straightedge, a J-roller, and a caulk gun with the manufacturer-approved sealant. Self-adhered tape may be butyl or asphalt-based, but the adhesive chemistry must suit the WRB and the cladding. A tape that bonds well to clean sheathing may not bond well to a coated house wrap or a sealant contaminated surface.
The sill needs a pre-formed metal or PVC pan with upturned legs and end dams, or a carefully formed site-built pan. Add backer rod where the design includes a larger sealant joint, and use sloped shims when the substrate itself doesn't provide positive drainage.
Jamb work usually requires flashing tape in widths that cover the jamb depth, plus corner patches for transitions. If you're bending metal on site, a hand seamer helps create clean folds instead of crushed corners. For the WRB tie-in, keep house-wrap patch pieces, cap fasteners, and compatible lap sealant ready before the window arrives.
| Stage | Items Needed | Common Mistake to Avoid |
|---|---|---|
| Rough opening preparation | Seam tape, compatible self-adhered flashing tape, utility knife, straightedge, J-roller, compatible sealant, caulk gun | Applying tape over dust, damp wood, incompatible coatings, or an uneven substrate |
| Sill pan installation | Pre-formed metal or PVC pan, upturned legs, end dams, backer rod, sloped shims | Setting the pan flat or relying on a caulk bead instead of a raised drainage edge |
| Jamb and head flashing | Correct-width flashing tape, corner patches, hand seamer for site-formed metal | Using narrow strips that stop short of the jamb depth or leaving corner gaps |
| WRB integration | House-wrap patches, cap fasteners, compatible lap sealant | Reversing the shingle lap or fastening the head flap without sealing penetrations |
Don't buy all-purpose duct tape for a water-management layer. General-purpose silicone also isn't a substitute for primary flashing, and thin membranes without adequate durability or self-healing characteristics are poor choices at jambs where fasteners and movement can create openings.
Manufacturer instructions control where they're more specific than general trade practice. For broader roof and wall water-management context, homeowners can also find roof flashing help, but window flashing still has to be matched to the actual window, WRB, and cladding system.
Preparing the Rough Opening
The opening must be right before anyone starts peeling backing from flashing tape. A crooked, damp, or unstable rough opening can defeat an otherwise careful installation.
Check structure and geometry first
Verify that the rough opening is plumb, level, and square. The king and jack studs should be sound, dry, and able to hold the window fasteners. Check the sheathing and sill substrate for swelling, rot, loose edges, or damaged areas. If the sill flexes under pressure, flashing installed over it won't remain a dependable drainage base.
Confirm that the WRB is continuous across the wall and that its vertical seams are properly taped. The WRB must be able to connect to the window flashing without a missing strip or an awkward reverse lap. A discontinuous water-management layer is a failure waiting to be covered by siding.
Make the WRB cuts in the right direction
At the head, make an I-pattern cut and fold the upper flap up temporarily. Cut the jamb flaps and peel them back without tearing the surrounding WRB. Leave the bottom flap available to lap over the future sill pan. This isn't cosmetic preparation. The cuts determine whether the WRB can be restored in shingle fashion after the window and flashing are installed.
Before setting the pan, establish positive slope to the exterior with sloped shims or a pre-pitched sill pan. The drainage surface needs to move water away from the wall, not store it beneath the frame. Proper practice also calls for the sill pan to integrate with the WRB so incidental water can exit instead of entering the cavity, as described in expert window installation sequencing guidance.
Dry-fit the window. Confirm the frame fits without forcing the opening out of square, then mark shim locations at the corners and quarter points. Make sure the shims will support the frame without blocking weep paths or creating a high spot that reverses the sill slope.
Before the window goes in: Stop if the sill isn't solid, the opening isn't square, the WRB can't be lapped, or the pan can't drain outward. No tape system can correct those conditions after the frame covers them.
The checks most likely to guarantee failure when skipped are simple: no positive sill slope, no continuous WRB path, no sound substrate, and no dry fit. Fix those conditions while the opening is exposed. Once the window, insulation, trim, and drywall hide them, diagnosis becomes slower and repairs become more invasive.

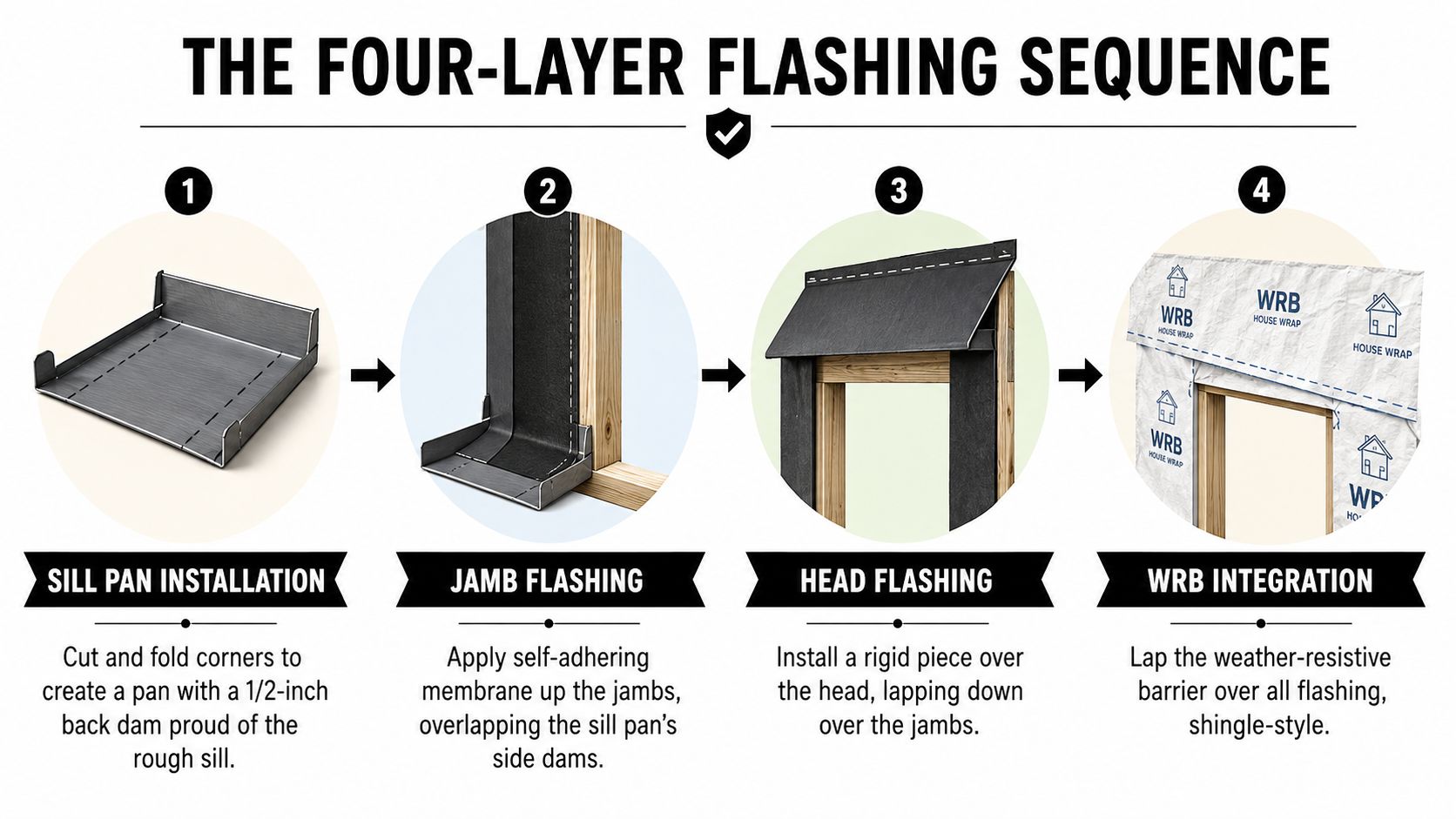

The Four-Layer Flashing Sequence
The installation is a layered build. Each layer has to overlap the next so water moves from the upper surface to the lower surface, then out of the wall. The steps can't be treated as independent pieces that happen in any convenient order.
Sill pan installation
Start at the bottom. Cut and fold the pan corners so the sill has a continuous tray, a raised back dam that stands 1/2 inch proud of the rough sill, and a positive slope toward the exterior. Pre-formed PVC or metal pans can improve consistency, but they still need a properly prepared substrate and compatible connections at the jambs.
The pan's upturned legs should meet continuous end dams at both sides. Don't create the end dam with a fragile bead of caulk alone. The dam needs to be part of the formed pan or a properly integrated flashing assembly that keeps water from running sideways behind the jamb.
Jamb flashing
Apply the jamb flashing after the sill pan. Run the membrane up each side of the opening and overlap the pan's upturned legs. Press the tape firmly with a J-roller, especially at corners and changes in plane. The jamb layer must direct water downward onto the pan rather than behind it.
The exact product can vary, but the lapping direction can't. The upper piece must shed onto the lower piece. If the jamb flashing terminates behind the pan leg or leaves a gap at the corner, water can bypass the tray before the window is even installed.
Head flashing
Set the window according to its installation instructions, using the marked shim locations and compatible fasteners. After the frame is secured, install head flashing across the top. A rigid head flashing or drip component is particularly important at ganged windows, where water can otherwise drain behind the WRB.
The head flashing must lap over the jamb flashing and connect to the WRB above. Seal or cap the top edge of the head flange as the system requires, while keeping the outward drainage edge open. Fasteners should be installed according to the window and flashing manufacturer's requirements, and exposed penetrations at the upper edge need compatible cap sealing.
WRB integration
Restore the WRB in shingle fashion. Bring the bottom flap over the sill pan, place the side flaps over the jamb flashing, and bring the top flap down last so it covers the head flashing and head flange. Use compatible tape or lap sealant at the cuts, and use cap fasteners where the WRB needs mechanical attachment.
A recessed window adds another water-management condition. The trim return from the recessed frame to the cladding creates a deeper transition, effectively adding a fifth layer that must shed water outward. The return needs its own geometry, corner treatment, and connection to the cladding plane. If the trim creates a reverse lap, the window can be perfectly flashed at the rough opening and still leak at the finished exterior.
The sequence is bottom first, sides second, top third, WRB last. Any installation that starts by sealing the face and improvises the drainage later has the priorities backward.
For visual reference, this video demonstrates the kind of installation sequencing and water-management logic that should be visible on site.
Common Flashing Mistakes That Still Cause Failures
A new roll of expensive flashing tape won't rescue a bad lap. The most persistent failures happen where water changes direction, especially at the sill corners, head corners, WRB cuts, and recessed trim returns.
Geometry beats extra sealant
Reversed WRB laps are among the easiest errors to identify once the installer exposes the corner. Water moving down the wall should encounter the top layer and continue over the lower layer. A reverse lap sends water behind the drainage plane.
A flat sill pan has the same basic defect. It may be sealed at every edge, but standing water still stresses the joints and gives freeze-thaw cycles an opportunity to work on the assembly. The pan needs a positive path to the exterior, and its end dams need to remain continuous at both jambs.
The head deserves special attention in Utah. If the upper edge of the head flashing remains exposed, intense UV can degrade compatible membranes and sealants. Cap-seal the upper edge and protect exposed material with UV-stable trim or metal flashing rather than expecting a hidden layer to tolerate direct sunlight indefinitely.
The sealant trap
Installers sometimes apply a thick bead across the window nailing fin and call the opening sealed. That can hide the problem for a season, but it may also trap water against the sheathing by closing the route the assembly needs for drainage. Sealant belongs at designed joints and transitions. It shouldn't block weep paths or replace a pan and lapped flashing.
A recessed unit creates a particularly common trap. The deeper trim return can meet the cladding in a reverse lap, turning the top of the recess into a small collection point. Water then runs inward toward the window instead of outward over the exterior face.
Before drywall covers the opening, make two practical checks:
- Pull back a WRB corner: Confirm the side layers lap over the sill and the upper layer will lap over the head. The direction should be visibly downward and outward.
- Test the pan: Pour a small amount of water into the sill pan and watch it leave toward the exterior. If it pools, runs sideways, or disappears behind the end dam, stop and correct the geometry.
The PNNL guide to fully flashed windows and doors also emphasizes lapping and drainage rather than treating caulk as the complete water-management system. That distinction is the difference between a visible seal and a functioning wall assembly.
Climate, Code, and Recessed Windows
Utah installations face a combination that generic window guides often understate: high-elevation UV exposure, freezing temperatures, snow, and repeated freeze-thaw movement. The flashing strategy should respond to those conditions instead of copying a mild-climate detail.
Different weather creates different priorities
In Utah's mountain and northern communities, exposed self-adhered membranes need protection from sunlight. Cap-seal the top edge of head flashing, keep exposed butyl behind UV-stable trim or metal, and avoid leaving a membrane edge visible while the project waits for cladding. A sill pan that holds water is also a poor fit for freeze-thaw conditions. Positive slope and continuous end dams aren't optional details at those openings.
Coastal installations shift the emphasis toward corrosion-resistant metals, compatible dissimilar materials, and continuous air seals that manage wind-driven rain. Mild inland zones may place less stress on freeze-thaw movement, but the shingle-lap sequence still controls drainage. Climate changes the materials and exposure protection. It doesn't change the direction water must travel.
| Climate Zone | Primary Risk | Required Detailing | Code Note |
|---|---|---|---|
| Utah high-elevation and mountain areas | UV exposure, snowmelt, freeze-thaw movement, wind-driven rain | Protect exposed membranes, use positive sill slope, maintain end dams, cap head flashing edges | Verify local amendments and the adopted IRC provisions |
| Coastal and high-wind areas | Wind-driven rain, salt exposure, corrosion | Use corrosion-resistant metals, compatible sealants, continuous air and water seals | Confirm material compatibility and local coastal requirements |
| Mild inland areas | Rain entry through laps, joints, and installation gaps | Maintain full sill, jamb, head, and WRB continuity | Follow the locally adopted flashing and WRB provisions |
Recessed and deep-set windows need a separate drainage plane
A deep-set window isn't a standard window moved inward. Its trim return changes the cladding plane and can create a small roof-like surface above the unit. That surface needs an outward slope, a head flashing edge, protected corners, and a clear connection to the WRB.
Industry guidance was still being updated in 2026 for windows with mounting flanges in membrane drainage systems, as reported by Door and Window Market magazine. That ongoing refinement matters because nonstandard geometries expose problems that a generic tape sequence doesn't answer.
The IRC provisions commonly referenced for this work include R703.4 for window flashing and R703.6.1 for WRB integration, but local amendments can add requirements for sloped sill pans, end dams, or pan flashing at exterior penetrations. Ask the building department or installer to identify the adopted local language before work begins. Code compliance is a baseline. The geometry still has to make water leave the wall.
Inspection Checklist, Maintenance, and When to Call a Pro
A finished window shouldn't be judged only by a clean bead of exterior caulk. Inspect the layers before they disappear behind trim, siding, insulation, and drywall.

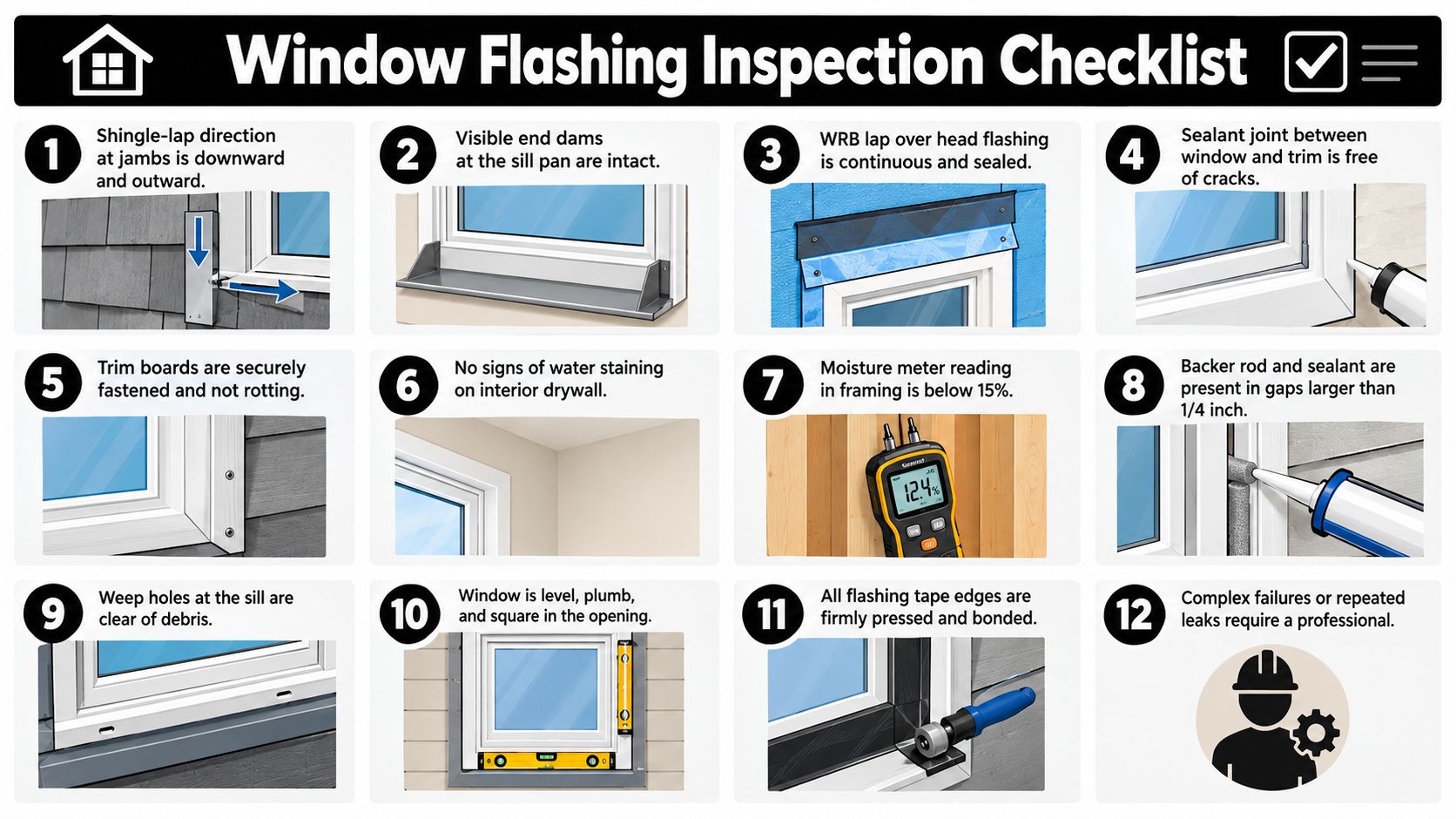

Use this twelve-point field checklist
- Shingle laps: Confirm jamb flashing laps over the sill and the head laps over the jambs.
- Sill end dams: Verify both end dams are visible, continuous, and intact.
- WRB continuity: Check that the WRB laps over the head flashing and is sealed at the cuts.
- Sealant joints: Look for cracks, gaps, adhesion loss, and blocked drainage openings.
- Trim condition: Make sure trim is secure, dry, and clear of the flange drainage path.
- Interior staining: Inspect drywall and interior trim for brown marks, bubbling paint, or dampness.
- Moisture readings: A qualified inspector can use a moisture meter to compare suspicious framing with dry adjacent areas.
- Large joint backing: Confirm backer rod and compatible sealant are used where the joint design requires them.
- Weep paths: Keep window weep holes and sill drainage channels clear of paint, debris, and caulk.
- Frame alignment: Check that the window remains level, plumb, and square.
- Tape adhesion: Pressed flashing edges should be firmly bonded without fish mouths, lifted corners, or open seams.
- Professional review: Escalate repeated leaks, concealed damage, and complicated cladding assemblies.
Keep maintenance simple and timely
Walk the exterior in spring and look for cracked sealant, loose trim, damaged cladding, and exposed membrane edges. Refresh a failed caulk joint only after removing loose material and drying the substrate. Inspect promptly after hail, ice dams, or a severe wind event because impact and movement can open joints that looked sound before the storm.
A roof inspection can also help rule out water entering above the window rather than at the window itself. For complicated leak tracing, a professional roof inspection can be useful alongside a window and wall-envelope inspection.
Call a certified installer when you find interior staining, soft sheathing at the sill, mold at a jamb, failed tape adhesion, a recessed-window retrofit, or a stucco-over-flange assembly. Those conditions can require removal of trim or cladding, replacement of damaged substrate, and reconstruction of the drainage plane. Involving a professional before drywall closes the wall is almost always less disruptive than trying to reconstruct the sequence after the leak appears.
