Triple-pane windows typically perform in the U-0.15 to U-0.20 range, which is roughly R-5 to R-7, about five to six times the insulation of a single-pane window. If you're comparing replacement windows for a Utah home, the U-factor on the whole-window NFRC label is usually the clearest number to trust.
A Salt Lake City homeowner can spend an afternoon comparing quotes and still feel no closer to an answer. One contractor may advertise “R-7 windows,” another may lead with a U-factor, and a third may talk mostly about Low-E glass or solar control. Those labels describe related pieces of performance, but they aren't interchangeable without a little translation.
The practical question is whether the upgrade will make your rooms more comfortable and reduce heat loss enough to justify the added cost. The answer depends on your existing windows, the direction they face, your home's air leakage, and how long you expect to stay. Utah's cold winter nights make insulation important, but the state's intense summer sun means solar heat gain matters too.
Why Window Labels Confuse So Many Homeowners
A Salt Lake City homeowner can compare two proposals at the kitchen counter and still struggle to tell which window performs better. One may say R-5, while another lists U-0.20. The figures can describe similar thermal performance, yet the smaller U-factor initially seems worse because insulation is usually discussed with larger-is-better R-values.
The confusion starts with two rating systems used for different building components. Walls, attics, and roofs commonly use R-value. Window assemblies are commonly identified by U-factor, which the National Fenestration Rating Council's window-rating approach applies to the complete unit, including the glass, frame, spacers, and other parts that influence heat flow.
Window labels also separate thermal insulation from solar control. U-factor describes heat transfer through the assembly, while SHGC describes how much solar heat enters through the window. A window can insulate well and still admit substantial sunlight, so one label cannot answer every comfort or energy question.
The short translation
High-performance triple-pane windows commonly fall between U-0.15 and U-0.20. Using the inverse relationship between the two scales, those ratings correspond approximately to R-6.7 and R-5, respectively. That is why installers may describe advanced triple-pane units as roughly R-5 to R-7 windows.
The practical reading is simple: a lower U-factor slows heat transfer, while a higher R-value indicates greater resistance to it. These figures describe the window assembly, not a promise that the entire heating bill will drop by the same proportion. Windows are only one part of the building envelope, and air leakage, orientation, and installation also affect results.
Installer's rule: If a quote gives you an R-value, ask for the whole-window NFRC U-factor too. It provides a clearer comparison between manufacturers.
A reliable quote should identify the whole-unit U-factor, rather than only the center-of-glass value. Ask for the SHGC, frame description, glass configuration, and installation scope as well. Reading those labels together makes it easier to judge whether a triple-pane upgrade fits the home, climate, and budget.
Understanding R Value, U-Factor, and SHGC
A quote can list several window ratings that seem to describe the same thing. They do not. R-value and U-factor describe resistance to heat flow, while SHGC describes solar heat entering the home. Reading them together gives a more useful picture than focusing on one impressive-looking number.
The conversion is straightforward: R-value is approximately 1 divided by U-factor. A lower U-factor means less heat transfer, and a higher R-value means more resistance. These are two ways of expressing the same thermal relationship, although certified window ratings remain more reliable than a rough calculation.
Converting the label
Use the number one divided by the listed U-factor:
- U-0.20: 1 ÷ 0.20 equals approximately R-5.
- U-0.15: 1 ÷ 0.15 equals approximately R-6.7.
That quick calculation helps homeowners compare quotes. It does not replace the certified rating, because manufacturers may report glass-only or whole-window performance. The whole-window figure is the more useful choice for comparing complete products, including the frame and edge areas.
Where SHGC fits
Solar Heat Gain Coefficient, or SHGC, measures how much solar energy enters through the window. It answers a different question from R-value. A window may insulate well while admitting considerable sunlight, or it may combine strong insulation with coatings that reduce solar gain.
Utah homes can need different SHGC choices on different sides of the building. South- and west-facing glass may receive strong summer sun, while north-facing glass generally has different exposure. Orientation, exterior shading, room use, and cooling needs should guide the selection. Choosing the lowest SHGC automatically can reduce useful winter sunlight in some rooms.
Read the label as a set of controls. U-factor shows heat-transfer performance, SHGC shows solar heat entering the home, and visible transmittance describes daylight. A winter draft or cold-glass complaint points first toward U-factor and installation quality. An overheated afternoon room also calls for a review of SHGC and shading.
For a quote, ask whether the rating covers the complete installed window or only the glass. Confirm the frame description, glass configuration, SHGC, and installation scope before comparing prices. A triple-pane upgrade makes the most sense when its thermal improvement addresses the home's exposure and comfort problems, rather than adding another pane.

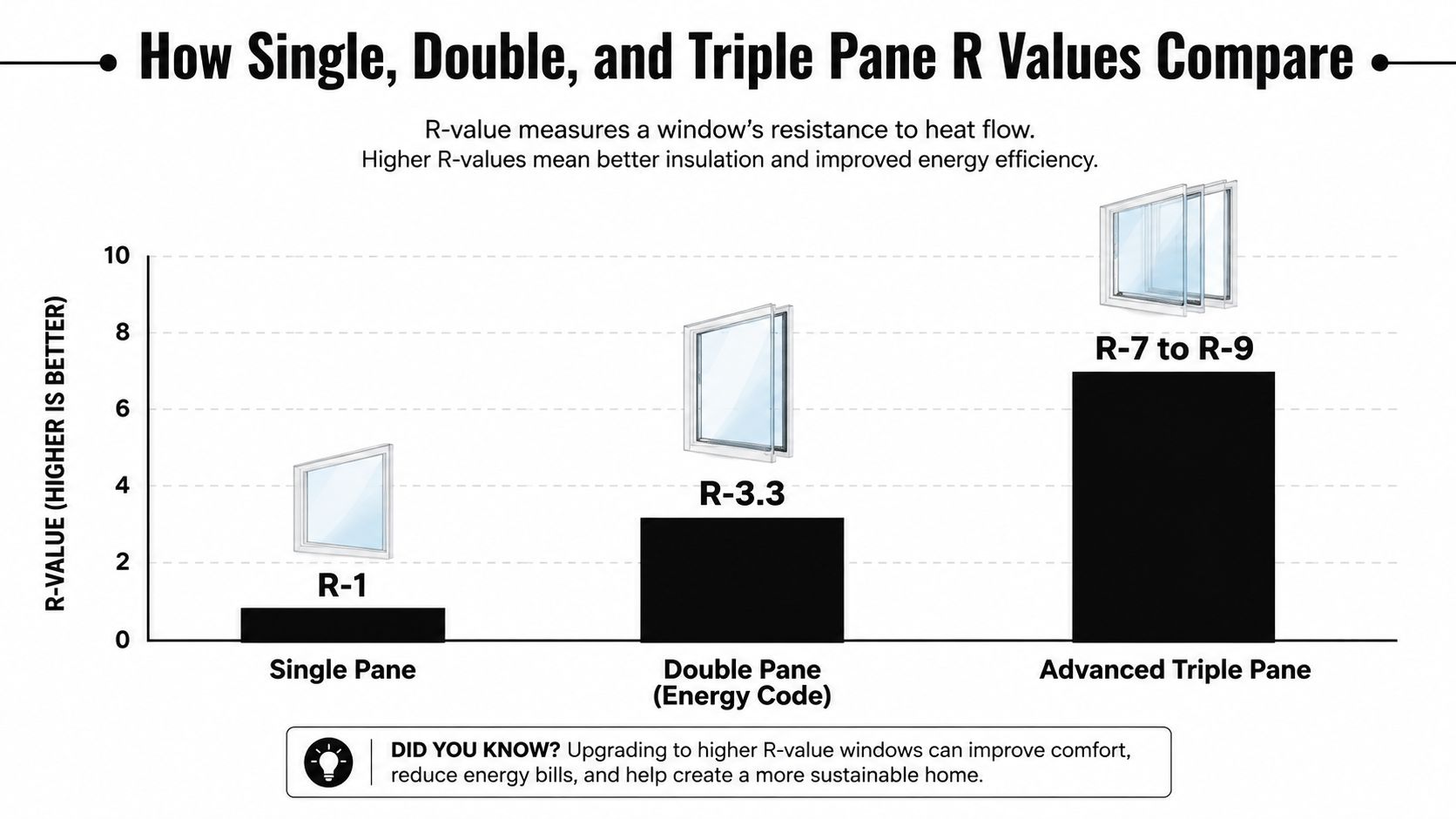

How Single, Double, and Triple Pane R Values Compare
A single-pane window can leave interior glass cold enough to feel like a weak spot in the room. Add a sealed insulating space, better coatings, and a suitable frame, and heat has more resistance to cross. Triple-pane construction adds another glass layer and insulating space, although the whole window still determines the result.
| Window type | Typical U-factor or reference | Approximate R-value | Practical interpretation |
|---|---|---|---|
| Single pane | Roughly U-1.0 territory | About R-1 | Limited insulation and cold interior glass |
| Double pane | Energy-code reference around R-3.3 | About R-3.3 | A substantial improvement over basic single glazing |
| Advanced triple pane | U-0.15 to U-0.20 | Roughly R-5 to R-7 | Higher insulation and improved interior comfort |
The triple-pane range follows the U-factor and R-value reference from InterNACHI. A 2024 study of thin-glass triple-pane insulated glass units compared triple-pane assemblies around U-0.20, with some fixed-frame versions reaching U-0.15. These figures describe window insulation, not the percentage reduction in a home's total heating use.
The retrofit comparison
The same study examined a home with existing double-pane aluminum-frame, clear-glass windows averaging U-0.67, or roughly R-1.5. Thin-glass triple-pane retrofit windows improved insulating performance by more than a factor of three compared with that baseline on a U-factor basis.
That comparison explains why “double pane” and “triple pane” are incomplete descriptions. An older aluminum-frame unit can perform very differently from a newer double-pane window with improved framing, sealed spaces, and Low-E coatings. The starting window matters as much as the pane count when estimating an upgrade's value.
The five-to-six-times single-pane milestone applies to insulating performance on the same conversion scale. It does not mean heating use will fall by that amount. Heat can still escape through doors, roofs, walls, ducts, air leaks, and mechanical systems. Triple pane can address a cold window, but it cannot correct an unsealed wall or poorly fitted opening.
For a homeowner, compare more than two panes against three. Review the whole-unit U-factor, frame design, glass coatings, installation quality, and the condition of the existing opening. That comparison gives a clearer answer about whether the extra glass will improve comfort enough to justify its cost.

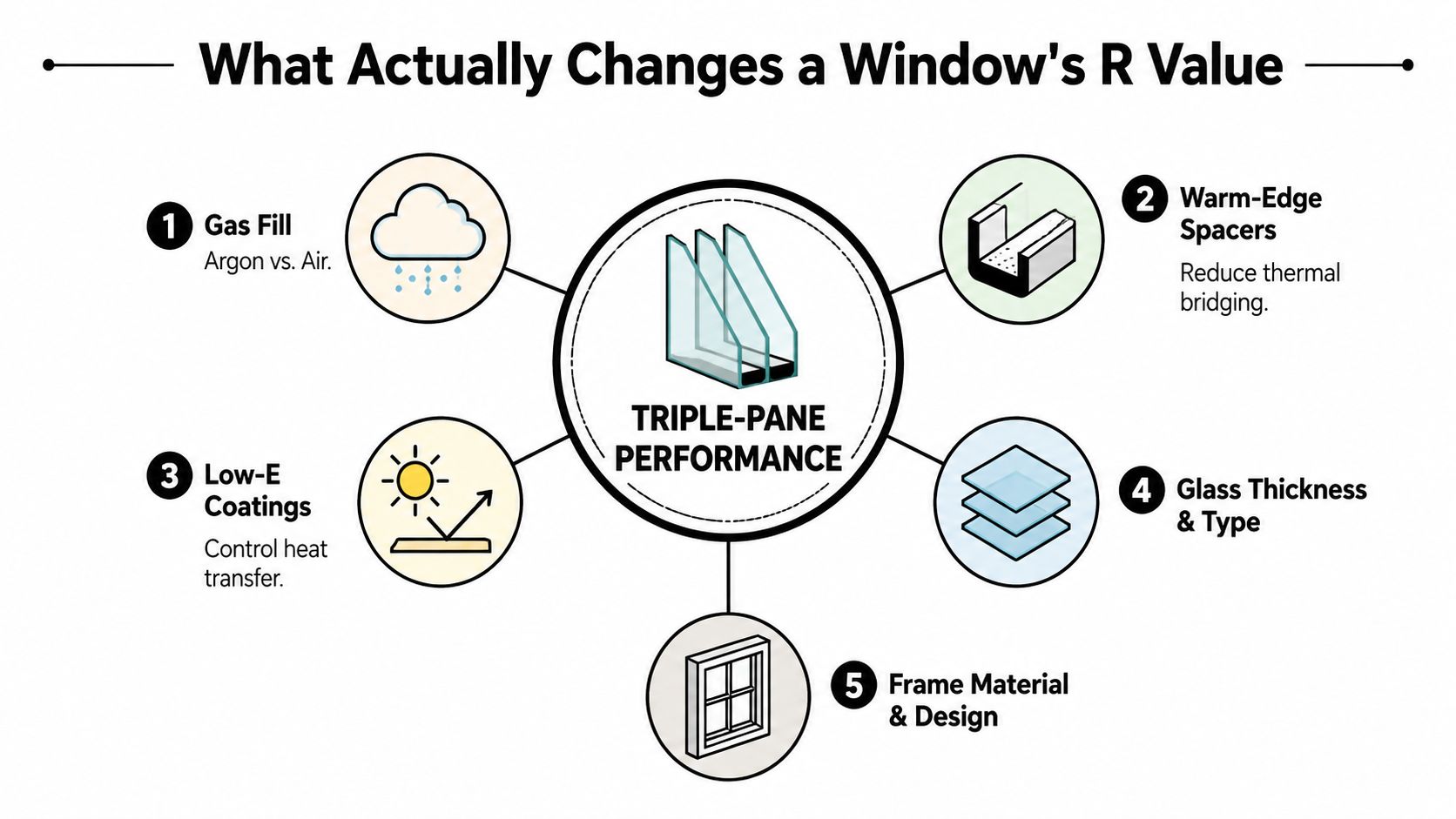

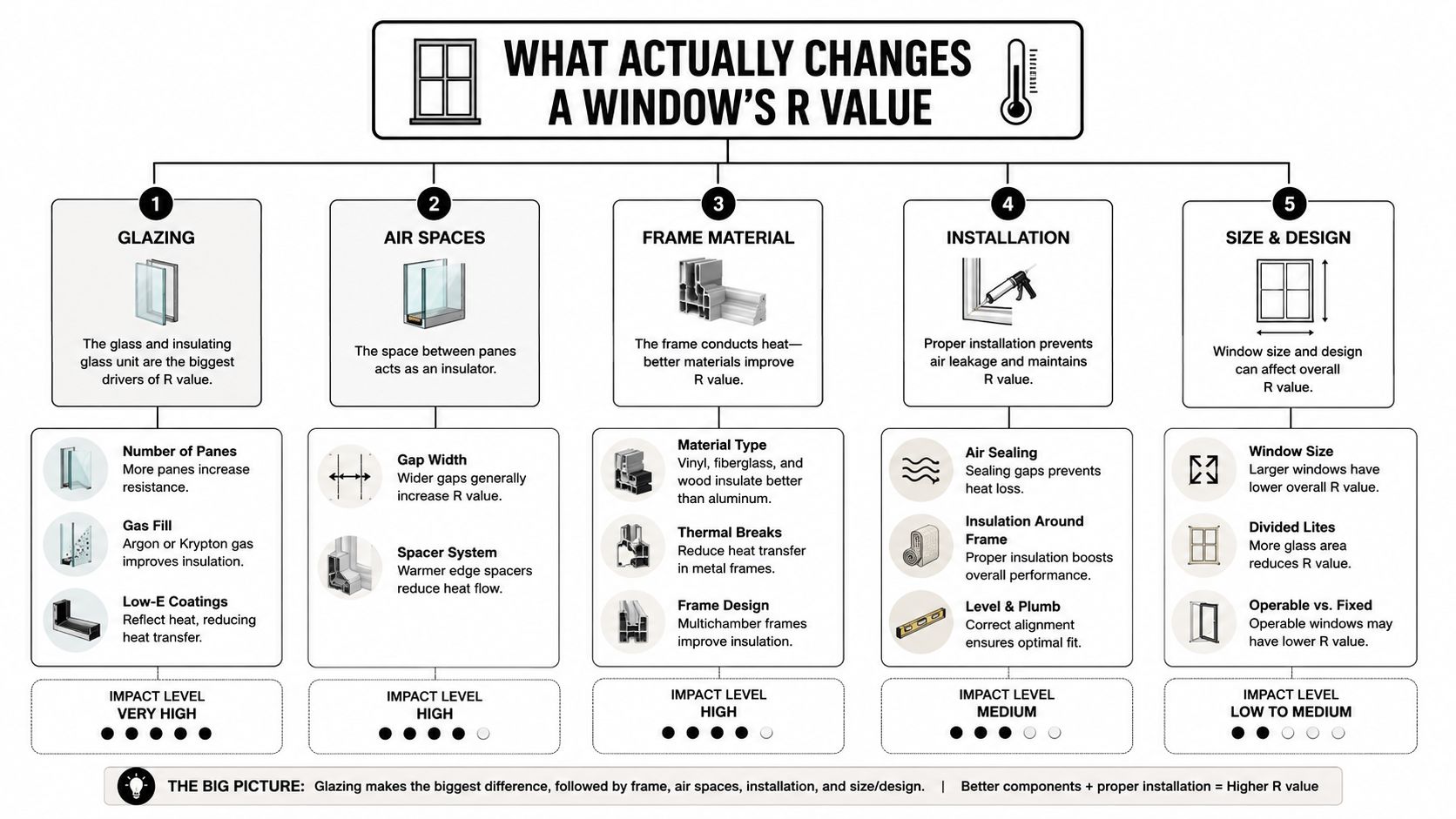

Key Factors That Determine a Window's R-Value
The number of panes is only the starting point. A window's practical R-value comes from the complete system, including the sealed spaces, coatings, frame, edge details, and installation. Two products marketed as high-performance triple pane can perform differently once installed in the same house.
The glass spaces and coatings
Gas fill: The spaces between panes may contain insulating gas instead of ordinary air. Ask which gas the product uses, how the unit is sealed, and what the warranty covers if a seal fails. Gas-filled glass performs as designed only while the insulating space remains properly sealed.
Warm-edge spacers: Spacers keep the panes separated around the perimeter. A warm-edge design limits heat transfer through that edge, which can otherwise create a conductive shortcut between indoor and outdoor conditions.
Low-E coatings: A low-emissivity coating controls radiant heat transfer. In winter, the appropriate coating helps keep indoor heat inside. In summer, a solar-control configuration can reduce sunlight-driven heat gain. The right selection depends on the home's orientation and climate, not on seeing “Low-E” in a brochure.
The frame and the opening
The frame contributes to the rated window's performance. Vinyl, fiberglass, wood, composite, and metal frames conduct heat differently, while frame geometry determines how much material surrounds the glass. Whole-assembly ratings provide a more useful comparison than a center-of-glass claim, as NFRC-focused window guidance explains.
Installation supplies the final part of the result. A high-performing unit can deliver less comfort if the rough opening has gaps, the sill lacks proper support, or the perimeter seal is incomplete. Air leakage differs from conductive heat loss, so a strong glass rating does not compensate for poor weather-tightness work.
Ask for the assembly, not the slogan: Request the product's certified whole-window U-factor, then ask how the installer will seal the opening, insulate the perimeter, and verify operation.
A window labeled R-5 may be a sound choice, but the label does not show whether the rating includes the frame, whether installation matches its assumptions, or whether the room's solar exposure calls for a different SHGC. Compare the rating document with a site-specific installation plan before deciding whether the added glass will improve comfort enough to justify its cost.
Triple Pane Performance in Utah's Climate
Utah homes face more than one seasonal challenge. Winter brings cold outdoor temperatures and long heating periods, while summer brings dry heat and strong sunlight. In the Salt Lake Valley, daily temperature swings and local air-quality conditions also make drafts and uneven room temperatures especially noticeable.
A low U-factor helps slow winter heat loss. Low-E coatings and an appropriate SHGC help manage solar gain during sunny periods. The window should be selected as part of the home's orientation, shading, insulation, and air-sealing strategy.
| Pane type | Typical U-factor | Approximate R-value | Best fit |
|---|---|---|---|
| Single pane | Around U-1.0 territory | About R-1 | Historic homes, temporary spaces, or openings awaiting replacement |
| Double pane | Varies by configuration, with energy-code products around R-3.3 | Around R-3.3 | Many standard replacement projects with moderate comfort goals |
| Advanced triple pane | U-0.15 to U-0.20 | Roughly R-5 to R-7 | Heating-focused homes, cold rooms, exposed elevations, and high-performance upgrades |
Why orientation changes the decision
A north-facing bedroom may benefit mainly from stronger resistance to winter heat loss. A west-facing living room may need both low U-factor and careful solar-control selection because afternoon sun can overwhelm an otherwise efficient space. South-facing glass can benefit from shading design, overhangs, or interior strategies that work with the chosen SHGC.
Utah's high-altitude sunlight also makes glass coatings and interior comfort worth discussing. Ask whether the proposed glazing is intended for strong sun exposure and whether the frame and spacer design can handle the temperature changes common around the opening. Cheap components may show their weaknesses first at edges, seals, and operating hardware.
The opening matters as much as the label
Valley homes often have comfort complaints that owners blame entirely on glass. A leaky installation, weak perimeter insulation, or an unbalanced heating system can leave a replacement window feeling disappointing even when its U-factor is excellent.
For that reason, request an evaluation of the rough opening and surrounding wall condition. Triple pane makes the most sense when the contractor treats the window as part of the building envelope, not as an isolated piece of glass.
A quality double-pane window may still be adequate in a protected room with limited heating concerns and a sound existing opening. Triple pane becomes more compelling for north-facing rooms, exposed walls, drafty openings, and homeowners who prioritize stable interior temperatures through Utah's winter.

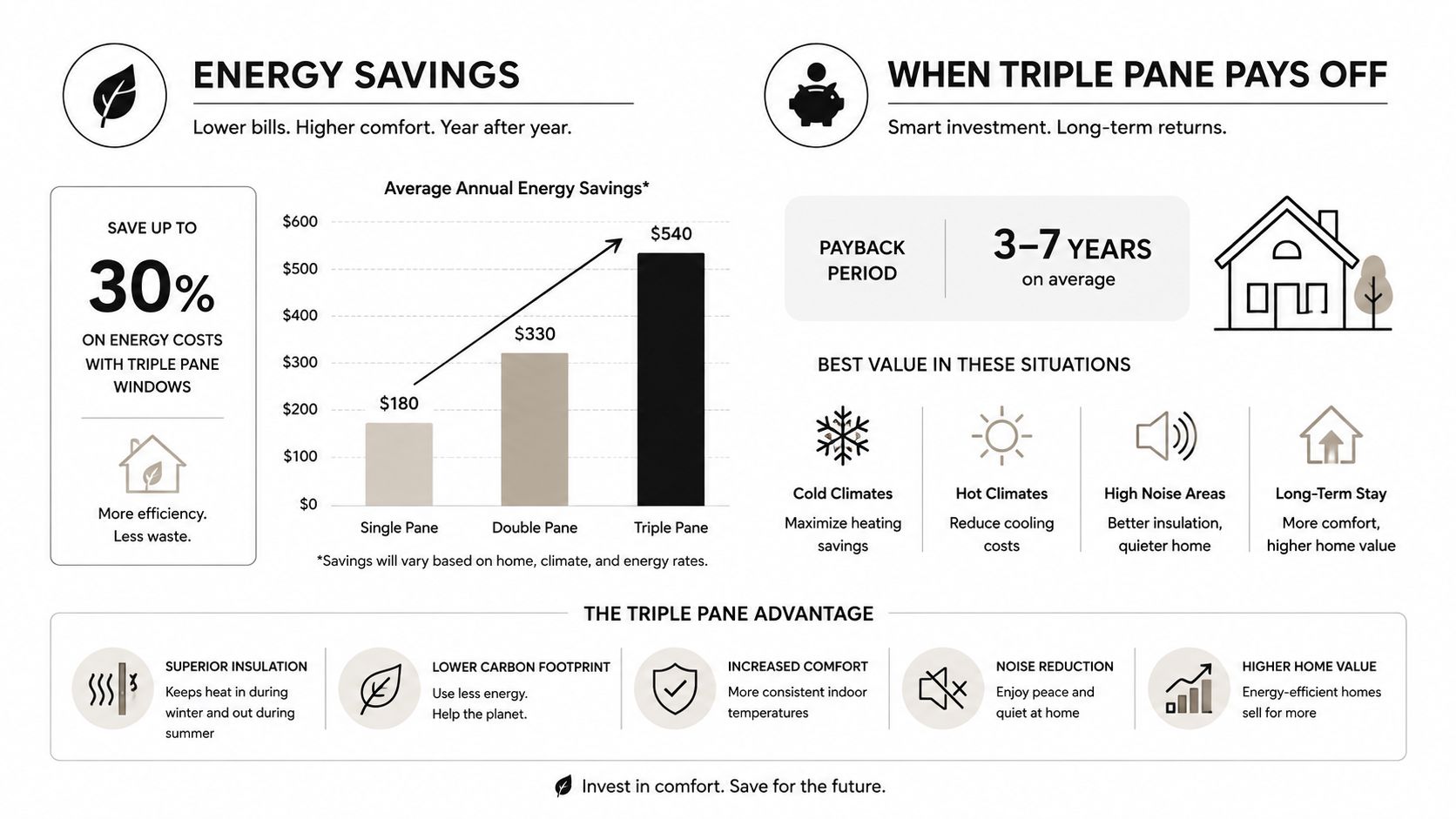

Energy Savings and When Triple Pane Pays Off
On a cold Utah morning, a well-insulated triple-pane window can feel different before the furnace runs. The inside glass stays closer to room temperature, while the window sends less indoor heat toward the outdoors. That comfort benefit is often easier to notice than the energy savings on a utility bill.
The clearest measured energy advantage appears in climates that spend more time heating. Lawrence Berkeley National Laboratory reported that thin-glass triple-pane glazing can reduce residential energy use by about 16% in heating-dominated Minneapolis, 12% in mixed-climate Washington, D.C., and 7% in cooling-dominated Houston, as documented in its thermal performance and potential research.
Utah is not Minneapolis, but northern Utah's winter heating demand makes the comparison useful. A lower U-factor has more opportunity to pay back when the home repeatedly moves heat from indoors to colder outdoor conditions. The savings depend on the existing window, the amount of glass, the heating system, utility history, and the project price.
Where the upgrade has the clearest case
Triple pane deserves serious consideration when:
- A room feels cold: Warmer interior glass can improve comfort even when the thermostat shows the expected temperature.
- The opening faces winter exposure: Wind and cold conditions make weak windows easier to notice.
- Heating costs are a concern: A lower U-factor reduces heat loss through the window assembly.
- You plan to stay: Long-term ownership gives comfort and efficiency improvements more time to matter.
- You're improving the whole envelope: Windows perform better when insulation and air sealing receive attention too.
Triple-pane windows use more materials and may require different installation handling, so the initial price can exceed a comparable double-pane project. Without a project-specific proposal, nobody can promise a precise payback period. A lower bill may be part of the return, while fewer drafts and steadier room temperatures may matter more to the people living there.
Exterior condensation isn't automatically a defect
Moisture or frost on the outside of a new triple-pane window can surprise homeowners. Exterior condensation occurs when the outside glass surface falls below the outdoor dew point. Passive-house-style triple glazing can sometimes produce outside condensation or frost because interior heat no longer warms the exterior pane as much, as discussed in technical guidance on exterior window condensation.
That moisture can signal effective insulation, but it does not make every condensation event harmless. Indoor humidity, weather, shade, sky conditions, drainage, and the moisture's location all matter.
Check the side of the glass first: Exterior moisture can reflect a cold outside surface, while moisture between panes may indicate a seal problem. Ask the installer to identify the condition before assuming the R-value is poor.
If the home still loses heat through uninsulated walls or air leaks, new glass may leave the project feeling incomplete. A good contractor should help prioritize the envelope rather than sell the window as an isolated fix.
Choosing Your Windows and Working With Superior Home Improvement
Start with the paperwork, not the showroom sample. Ask for the NFRC label and compare the whole-window U-factor across proposals. Then review SHGC by window orientation, because a west-facing opening may need a different solar strategy from a shaded north-facing opening.
Use this checklist during a consultation:
- Verify the rating: Confirm that the U-factor applies to the complete window assembly, including the frame.
- Review the glass package: Ask about Low-E coating placement, gas fill, spacer design, and the intended climate application.
- Inspect the opening: Have the contractor check sill condition, surrounding insulation, water management, and air leakage.
- Define the installation: Get the sealing method, trim work, cleanup responsibilities, and timeline in writing.
- Compare the warranty: Separate glass-seal coverage, frame coverage, hardware coverage, and workmanship protection.
Superior Home Improvement presents an Energy Conservation Program that combines triple-pane weather-tight windows with upgraded insulation strategies and UV-resistant materials. The company serves Salt Lake City area homeowners and lists free consultations, detailed estimates, extended warranties, more than 50 years of experience, and an A+ BBB rating as part of its service offering.
A written estimate should explain what the window upgrade includes and what it doesn't. If a contractor offers an energy-reduction guarantee, read the conditions carefully, including the baseline, qualifying work, and measurement terms, before treating it as a forecast for your specific home.
This week, choose the room that feels coldest or costs the most comfort, collect your current window information, and schedule an evaluation. Bring your utility history and ask for a side-by-side comparison of whole-window U-factor, SHGC, installation scope, and total project price.
Superior Home Improvement can evaluate your existing openings, explain whether triple-pane performance fits your Utah home, and provide a detailed estimate for a weather-tight window and insulation upgrade. Visit Superior Home Improvement to request a consultation and take the first step toward more consistent indoor comfort.
