Solar Heat Gain Coefficient, or SHGC, is the fraction of solar radiation a window admits as heat, expressed on a 0 to 1 scale. An SHGC of 0.30 means roughly 30% of the sun's heat is admitted indoors. If you're in a Utah home with a west-facing room that turns uncomfortable every summer afternoon, this small label can help explain why the air conditioner keeps working after the sun has moved lower in the sky.
The tricky part is that a lower SHGC isn't automatically the right answer for every window. Utah homes need to manage strong summer sun, useful winter warmth, window direction, exterior shade, daylight, and insulation as one connected decision.
A Hot Window and a Simple Question
By late afternoon in July, the living room looks pleasant from across the house. Up close, the story is different. Sunlight pours through the west-facing sliding glass door, the sofa fabric feels warm, and the air-conditioning unit keeps running even though the thermostat says the room should already be comfortable.
A homeowner might reasonably ask, “Why is this window making the room so hot?”
One answer is the window's solar heat gain coefficient, or SHGC. The rating shows how much solar heat enters through the complete window assembly. It includes the glass and the frame, rather than describing only a small sample of the glazing.
The scale is straightforward. A value closer to 0 admits less solar heat, while a value closer to 1 admits more. The NFRC explanation of SHGC defines it as the ratio of solar heat entering through a fenestration product to the solar radiation striking it. In practical terms, a lower number generally helps control unwanted summer heat.
The coffee-mug test
Put the same coffee mug on a sunny counter near three different windows. The mug beside the higher-SHGC window will absorb more solar warmth through that opening. The glass hasn't created sunlight, but it has allowed more of the sun's energy to enter the room and warm nearby surfaces.
That analogy helps, but it leaves out the part that causes the most confusion. The best SHGC depends on which direction the window faces, how much shade it receives, and whether winter solar warmth is useful. A west-facing window can need stronger summer control than a shaded north-facing window. A south-facing window may deserve a different choice because its solar exposure changes with the season.
Practical rule: Treat SHGC as a room-by-room comfort setting, not as a contest to find the smallest number on a product label.
Utah's high-desert conditions make that distinction important. A window can reduce afternoon overheating while also limiting beneficial winter sun. The right specification balances those competing loads instead of assuming that one rating belongs on every wall.

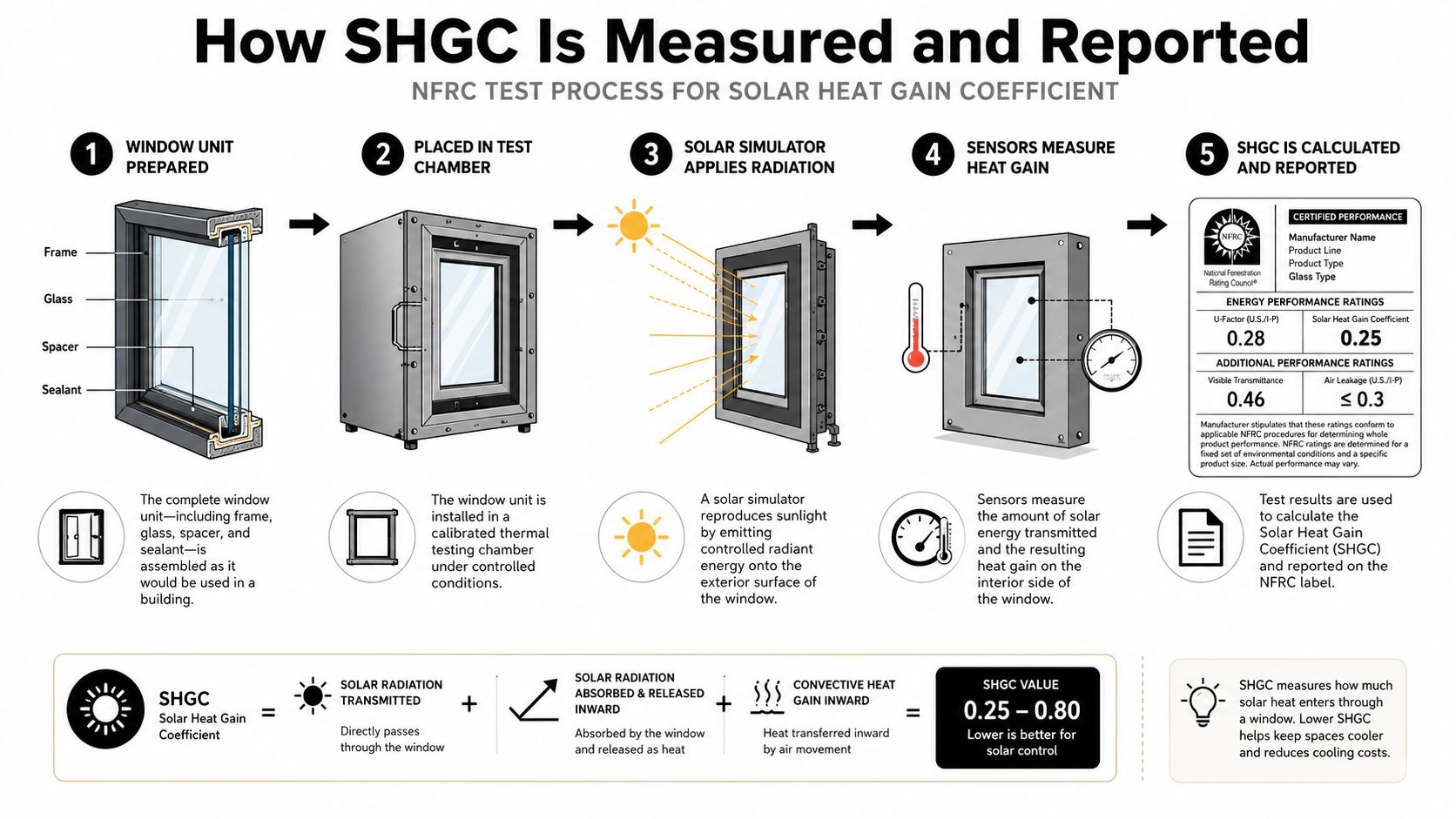

How SHGC Is Measured and Reported
A window's SHGC comes from a standardized evaluation of the whole fenestration product. The rating reflects the assembled unit, including the frame, glazing, spacer, coatings, and other components that influence how solar energy moves through the window.
The testing framework described in NFRC 200 procedures uses reference summer conditions of 75°F indoors and 90°F outdoors, with the product evaluated at normal incidence. The result is reported on a practical scale from 0 to 1.
What happens during testing
Think of the process as a controlled solar experiment:
- The complete window is evaluated. Testers consider the frame and glass together, not just the center of the pane.
- Solar radiation is applied. The unit receives simulated sunlight under defined test conditions.
- Heat movement is measured. The test accounts for sunlight transmitted directly through the glazing and solar energy absorbed by the product before being re-radiated inward.
- The result becomes a coefficient. The admitted solar heat is related to the incident solar radiation, producing the SHGC value.
That process explains why two windows with similar-looking glass can carry different ratings. A tint, low-emissivity coating, spacer, frame material, or glazing configuration can change the final whole-window result.
Reading the NFRC label
Manufacturers typically place SHGC on the NFRC-certified window label alongside other performance ratings. That label lets you compare complete products using consistent measures.
The label doesn't promise that a window will feel identical in every room. It gives you a controlled performance number that must be interpreted alongside orientation, shading, climate, and installation quality. Code guidance also treats SHGC as a whole-window value and uses specified defaults when certified product data aren't available.
That last point matters during a remodel. A product brochure may highlight the glass package, but the number you need for comparison is the certified rating for the finished assembly.
SHGC, U-Factor, and Visible Transmittance Compared
Window labels often place several ratings next to one another, and homeowners can easily treat them as interchangeable. They aren't. Each one answers a different question about comfort, heat flow, or daylight.
| Rating | What It Measures | Scale | Direction |
|---|---|---|---|
| SHGC | Solar heat admitted through the complete window | 0 to 1 | Lower generally limits solar heat, higher admits more |
| U-factor | Conductive heat transfer through the window assembly | Lower values indicate better insulation | Lower is generally better |
| Visible transmittance | Daylight transmitted through the glazing | 0 to 1 | Higher generally admits more visible light |
SHGC controls sun-driven heat
SHGC focuses on heat that arrives with sunlight. It matters most when direct solar exposure warms floors, furniture, walls, and people inside the room. A lower rating can help a sun-heavy room feel calmer during cooling season.
U-factor controls conductive transfer
U-factor describes how readily heat moves through the window material itself. It matters in both directions, but it becomes especially important during cold Utah weather when indoor heat is trying to escape. A window can have a strong U-factor and still admit too much afternoon sun if its SHGC doesn't suit the opening.
Visible transmittance controls daylight
Visible transmittance, or VT, tells you how much visible light passes through the window. More daylight can make a room feel open and reduce dependence on electric lighting, but bright glass can also create glare if the opening receives direct sun.
A reflective or strongly tinted product may reduce solar heat, yet it can also change the room's appearance and daylight level. That's why the three ratings belong in the same conversation.
A comfortable window doesn't just insulate well. It also manages sunlight and delivers the amount of daylight the room can use.
The comparison is especially important in Utah. You may want lower SHGC on a hot west wall, a low U-factor throughout the house, and enough VT on a north-facing room to preserve natural brightness. No single label number describes all three outcomes.
Why SHGC Matters for Utah Homes
Utah homeowners often experience two legitimate window problems in the same year. In summer, direct sun can increase the cooling burden, especially on west-facing glass. In winter, the same home may benefit from carefully managed sunlight entering through selected south-facing windows.
The ENERGY STAR window and glazing guidance describes SHGC as a climate-dependent choice. Southern-climate criteria can use SHGC at or below 0.25, while northern climates can use higher targets to capture winter solar warmth. For 2025 Most Efficient criteria, ENERGY STAR keeps the thresholds regional, with Northern Climate Zone products requiring SHGC at or above 0.20 and Southern and South-Central products capped at or below 0.23.
Those thresholds aren't Utah-specific prescriptions for every wall. They show why “lower is always better” is incomplete.
One wall, two different outcomes
Consider two west-facing windows of similar size:
| SHGC Value | Summer Heat Admitted | Winter Solar Benefit | Best Fit in Utah |
|---|---|---|---|
| 0.55 | Admits substantially more solar heat | Offers more potential passive warmth | Shaded or winter-priority openings |
| 0.30 | Admits less solar heat | Preserves some solar contribution | Stronger candidate for sunny mixed-use rooms |
A 0.55 window admits more of the incident solar heat than a 0.30 window. That can make a sunny seating area feel warmer in July, while the lower value can reduce solar stress on the same room. The winter trade-off is that the lower-SHGC option also captures less warmth from direct sunlight.
The useful question is not “Which window has the lowest SHGC?” Ask instead, “Which solar load am I trying to manage on this wall, during which season?”
Utah calls for load balancing
Salt Lake Valley homes can have bright winter mornings, hot summer afternoons, cool nights, and large temperature swings between sun and shade. Exterior overhangs, trees, neighboring buildings, and blinds can change the answer further.
A whole-house specification may therefore use different glass packages by orientation. That approach treats SHGC as a load-balancing decision, one that connects cooling, heating, daylight, and comfort near the windows.
Recommended SHGC Ranges by Orientation and Season
Orientation gives you a practical starting point. The ranges below are planning guidance, not universal code requirements, and they should be checked against the home's shading, glass area, room use, and heating system.
| Orientation | Recommended SHGC | Why This Range | Seasonal Note |
|---|---|---|---|
| West | 0.25–0.40 | Controls low-angle afternoon sun | Prioritize summer comfort and pair with shades |
| East | 0.25–0.40 | Limits morning solar gain | Exterior shade can be useful where available |
| South | 0.30–0.50 | Balances winter solar warmth with summer exposure | Adjustable shading helps manage seasonal change |
| North | 0.40–0.60 | Solar exposure is usually limited, so daylight can matter more | Preserve brightness while controlling conductive heat loss |
West and east windows
West glass deserves careful attention because afternoon sun arrives when the building and furnishings may already be warm. An SHGC around 0.25 to 0.40 can be a reasonable design range for exposed west openings. East windows face similar concerns in the morning, though the timing may be easier to manage with blinds or exterior shade.
South windows
South-facing windows can support passive warmth during colder months, but they still need summer control. A range around 0.30 to 0.50 gives a designer room to balance those needs. Roof overhangs and adjustable shades can make this choice more flexible because they help block high summer sun while allowing lower winter sun.
North windows
North windows generally receive less direct solar heat, so a higher SHGC may be acceptable when daylight and views are priorities. Keep VT at 0.40 or higher when preserving natural brightness is important, while still comparing U-factor and frame performance.
Showroom rule: Start with the wall direction, then adjust for shade. Don't select one SHGC for every opening without checking how the sun reaches each room.
For shoulder seasons, flexible shading often beats an overly rigid glass choice. A homeowner can use blinds, curtains, exterior screens, or landscaping to respond to changing weather without replacing the window's fixed rating.
A Simple Payback Example for a Salt Lake City Home
A precise SHGC payback calculation requires details that vary from house to house, including window area, glass orientation, shading, HVAC efficiency, utility prices, heating fuel, and installation cost. The requested Salt Lake City example uses 200 square feet of west-facing glazing, comparing a baseline SHGC of 0.50 with a replacement SHGC of 0.27.
That comparison shows the direction of the change clearly. The replacement admits a smaller share of the sun's heat through the west-facing glass, which can improve late-day comfort and reduce cooling demand during sunny periods. It doesn't, by itself, provide enough information to calculate an annual kilowatt-hour total or a dollar savings figure.
What the kitchen-table math can show
You can build a useful estimate in three stages:
- Estimate the solar load. Use the home's actual west-facing glass area, nearby shade, window orientation, and local sun exposure.
- Model cooling impact. Ask an HVAC professional or energy modeler to compare the two SHGC values under the home's operating conditions.
- Subtract the winter effect. A lower SHGC can reduce useful winter solar gain, so include that trade-off rather than counting summer savings alone.
The NFRC performance framework supports the comparison of whole-window SHGC values, but it doesn't establish your home's annual energy bill or project-specific payback.
Comfort belongs in the calculation
A spreadsheet can count energy use, but it may not capture the value of a room that no longer feels hot beside the glass. Lower solar gain can also reduce glare, make seating areas more usable, and help an HVAC system handle the afternoon load more evenly.
Exterior shade can strengthen the result because it blocks sunlight before it reaches the glass. Interior coverings still help, but they manage heat after the sun has already entered the window system.
The honest conclusion is simple. A change from 0.50 to 0.27 may be worthwhile for exposed west glazing, but the financial payback must come from a project-specific estimate rather than an invented annual savings figure. Request the assumptions in writing, including the cooling model, winter penalty, incremental window cost, and expected service life.

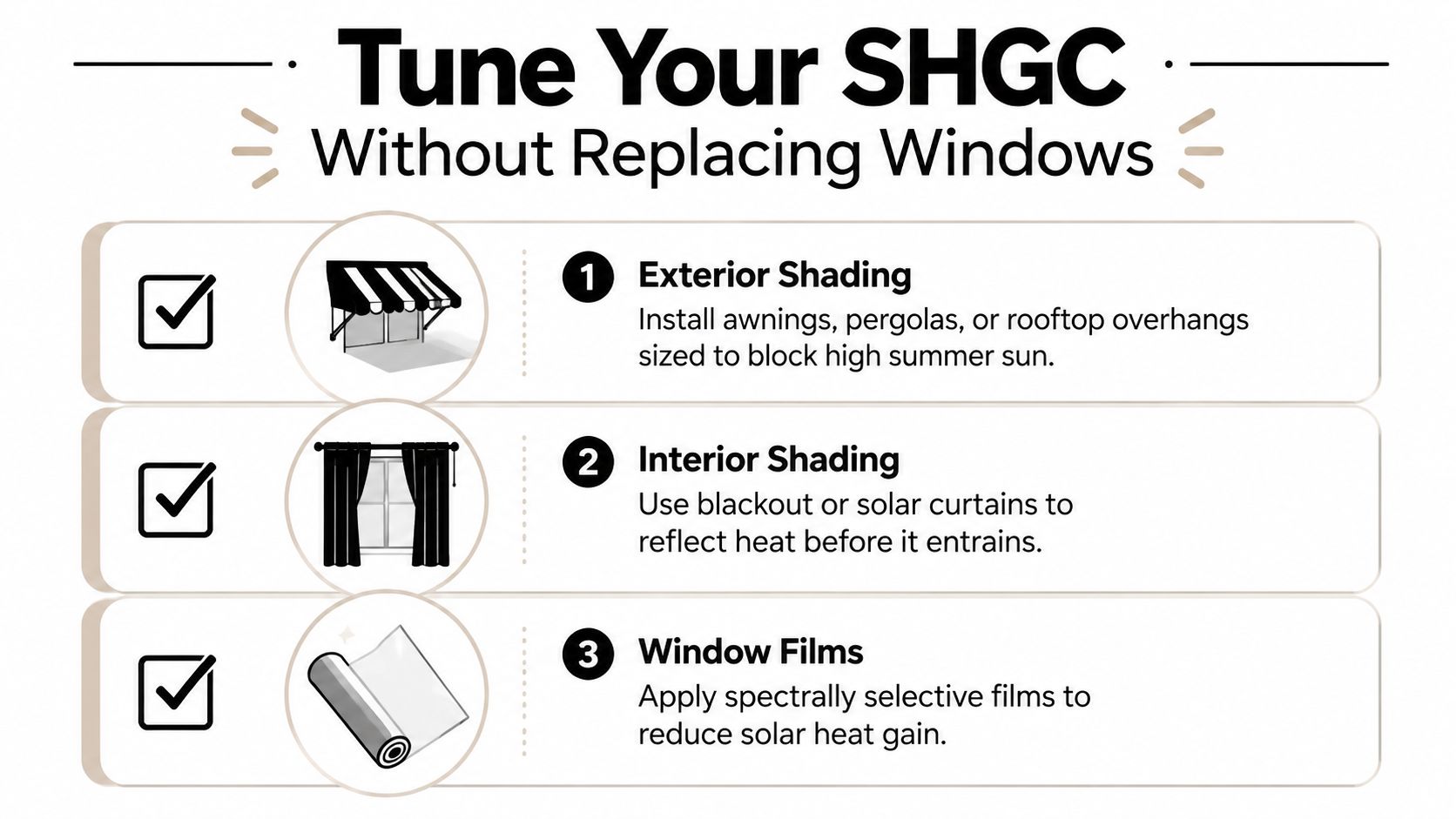

Shading Films and Overhangs to Tune SHGC
Replacing a window isn't the only way to change how a room responds to sunlight. Shading can alter the amount of solar energy reaching the glass, while films can change the glass's solar-control behavior.
Exterior shading blocks heat first
Awnings, pergolas, roof overhangs, exterior solar screens, and well-placed landscaping can stop sunlight before it strikes the window. South-facing overhangs are often easier to plan because the sun's seasonal angle is more predictable. A properly designed overhang can block high summer sun while admitting lower winter sun.
East and west walls are harder because low-angle sunlight can slip beneath or around a horizontal overhang. Vertical fins, exterior shades, or adjustable screens may work better for those exposures.
Interior shades manage the room's response
Cellular shades, roller shades, blinds, and thermal curtains can reduce glare and limit how much solar heat spreads through the room. West-facing rooms often benefit from shades deployed during the late afternoon, especially when structural exterior work isn't practical.
Interior coverings don't remove the need to consider SHGC during replacement. They're a flexible operating tool, while SHGC is a fixed property of the window assembly.
Films suit difficult retrofit openings
A spectrally selective low-emissivity film can be useful where a large pane cannot be shaded structurally or replaced immediately. Confirm compatibility with the existing glass and seal construction before installation. Film performance also depends on the specific product, so request its documented solar-control rating rather than relying on a general label.
Use this short decision checklist:
- Orientation: Identify whether the problem comes from east, south, or west sun.
- Shade availability: Check trees, roof geometry, neighboring buildings, and exterior wall access.
- Window condition: Repair air leaks and failed seals before adding a surface treatment.
- Room use: Prioritize spaces where glare and radiant warmth affect daily comfort.
- Budget and reversibility: Choose adjustable shades when you want seasonal control, and consider films where replacement isn't feasible.
A combined approach often makes more sense than relying on one measure. A moderate SHGC, exterior shade, and interior covering can give a Utah homeowner more seasonal control than an extreme glass specification alone.
Choosing Your Windows With Confidence
Bring the NFRC label, a floor plan, and a simple orientation map to any window consultation. You don't need to memorize every glazing term, but you should know which rooms overheat, which windows receive winter sun, and where shade already exists.
A buyer's checklist
- Confirm the whole-window rating: Compare certified SHGC and U-factor values for the complete assembly, including the frame.
- Match glass to orientation: Give west and east openings more solar-control attention than shaded north openings.
- Protect winter comfort: Don't reduce SHGC everywhere without considering useful south-facing solar gain.
- Check daylight: Compare VT with glare control, especially in offices, kitchens, and north-facing rooms.
- Review current criteria: Ask whether the product meets the relevant 2025 ENERGY STAR Most Efficient regional requirements, including the Northern Climate Zone provisions documented by ENERGY STAR.
- Ask about installation: Confirm air sealing, flashing, drainage, frame condensation behavior, and warranty coverage.
- Consider shading together: A good window can perform better when paired with exterior or interior solar control.
Superior Home Improvement offers Utah homeowners window consultations that account for U-factor, SHGC, room exposure, and comfort goals rather than treating every opening alike. Use that conversation to compare assemblies, understand the trade-offs, and request a detailed estimate with the product and installation assumptions clearly stated.
Back in the July living room, the hot west-facing glass no longer has to be a mystery. The homeowner can read the label, ask why a particular SHGC fits that wall, compare it with the home's south-facing needs, and decide whether shading, film, or replacement makes the most sense. That's the answer to what is SHGC in windows. It's a solar-control rating that becomes useful only when you connect it to the way your home receives sunlight.
